FBQ Middle Static Pressure Duct Split Type (Plastic Blower E Series)

Back

Select /hp or model

Paired model:

Specifications

Model

Indoor Unit

FBQ50EVE

Cooling Capacity

5 kW

17,100 Btu/h

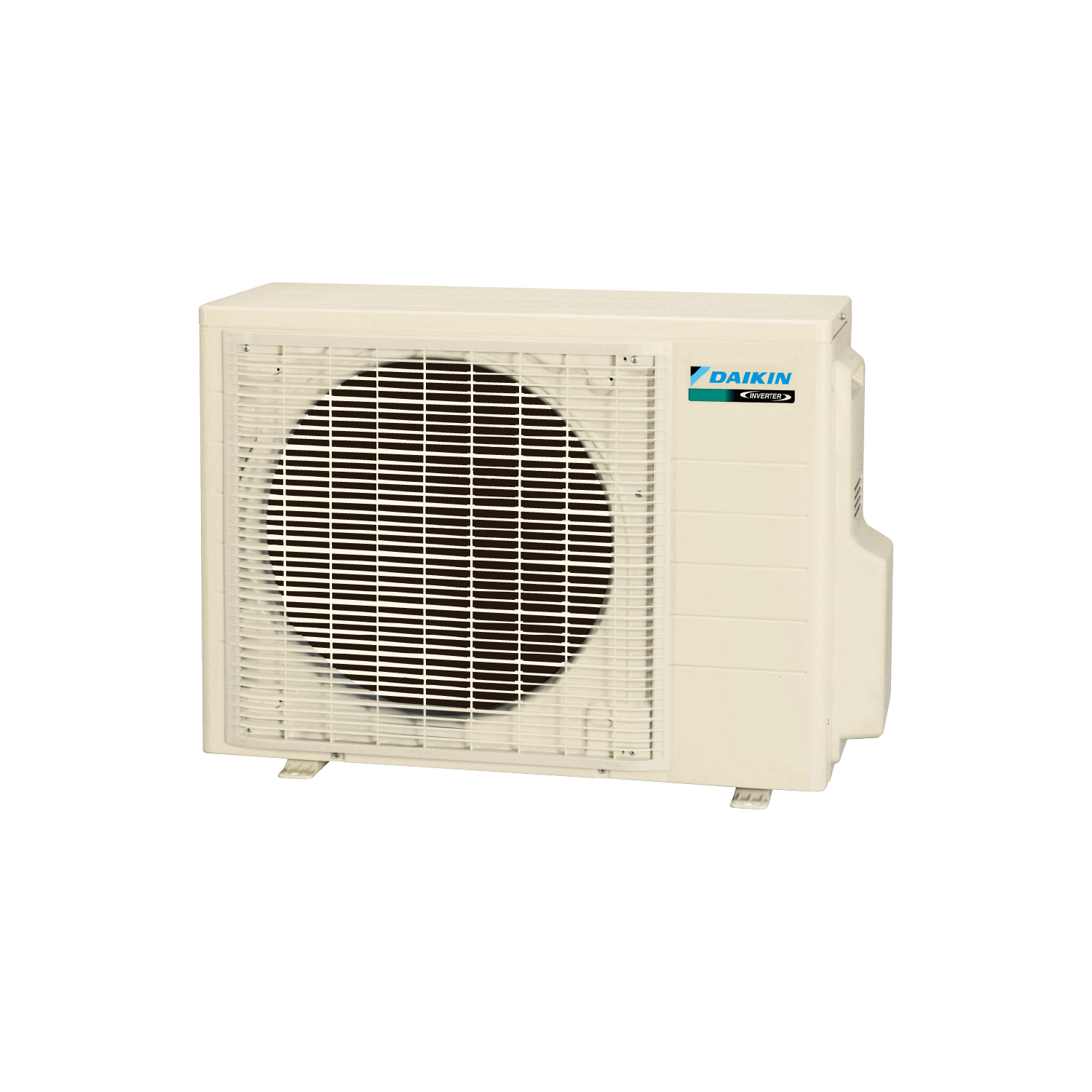

Outdoor Unit

RZR50MVM

Power Consumption

Cooling: 1.39 kW

Indoor Unit

Airflow Rate

12.5 - 18 (3 steps)

Dimensions (H x W x D)

245 x 1,000 x 800 mm

Sound Level

31 - 35 dB(A)

Outdoor Unit

Dimensions (H x W x D)

595 x 845 x 300 mm

Piping Connections

Gas: Ø15.9 mm

Liquid: Ø9.5 mm

Weight

43 kg

Max. Piping Length

50 m

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB

Piping length: 7.5m
