FHQ Inverter Heat Pump Ceiling Suspended Split Type (B Series)

Back

Select /hp or model

Paired model:

Specifications

Model

Indoor Unit

FHQ35BVV1B

Cooling Capacity

3.4 kW

11,600 Btu/h

Power Consumption

Cooling: 1.05 kW

Heating: 1.11 kW

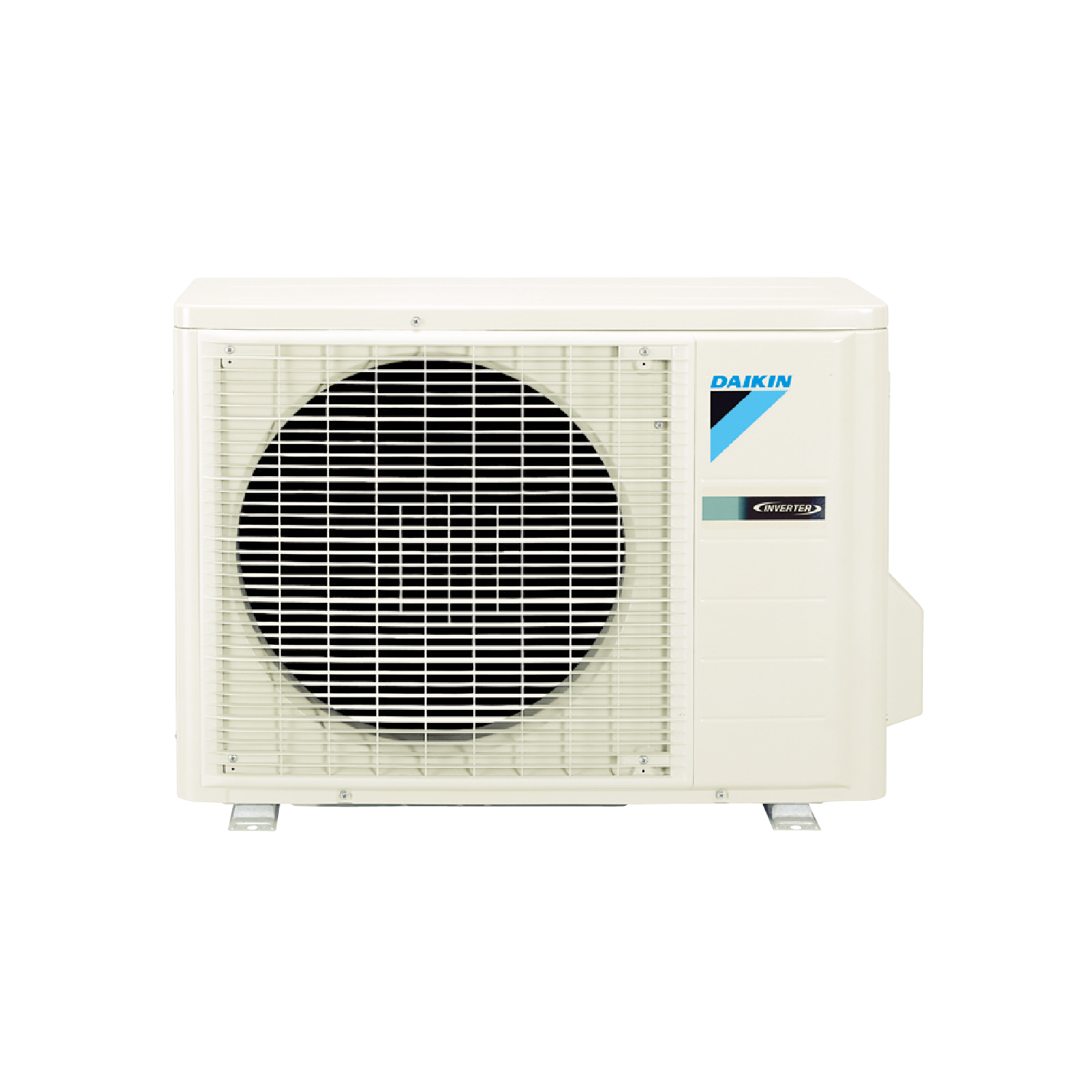

Outdoor Unit

RXS35EBVMA

Heating Capacity

4 kW

13,650 Btu/h

Indoor Unit

Airflow Rate

Cooling: 10 - 13 (2 steps) m³/min

Heating: 10 - 13 (2 steps) m³/min

Dimensions (H x W x D)

195 x 960 x 680 mm

Sound Level

Cooling: 32 - 37 dB(A)

Heating: 32 - 37 dB(A)

Outdoor Unit

Dimensions (H x W x D)

550 x 765 x 285 mm

Piping Connections

Gas: Ø9.5 mm

Liquid: Ø6.4 mm

Weight

34 kg

Max. Piping Length

20 m

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB

Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB/6°CWB

Piping length: 7.5m
