FDXS Inverter Heat Pump Low Static Pressure Duct Split Type (Plastic Blower Series)

Back

Select /hp or model

Paired model:

Specifications

Model

Indoor Unit

FDXS25CVMA

Cooling Capacity

2.4 kW

8,150 Btu/h

Power Consumption

Cooling: 0.69 kW

Heating: 0.91 kW

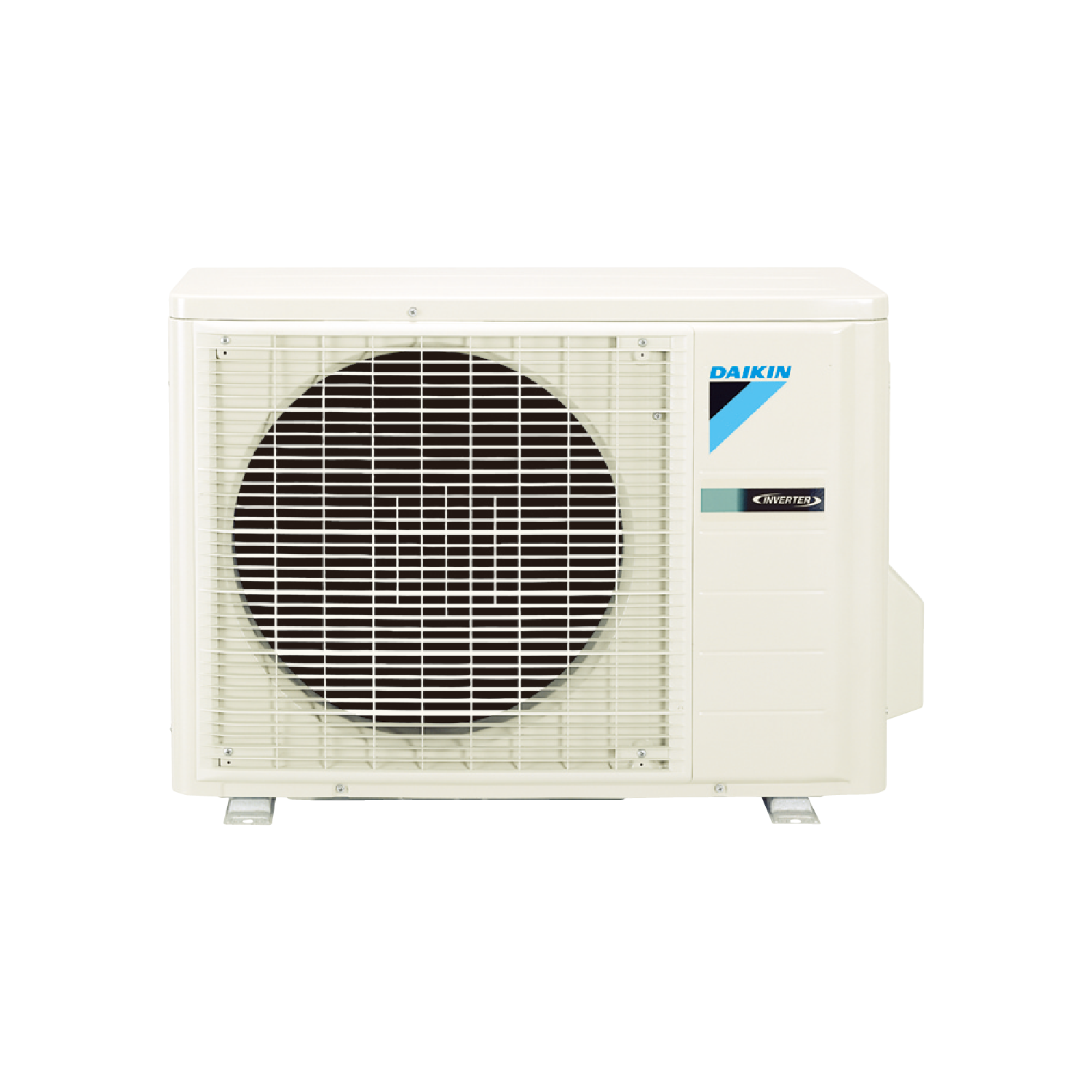

Outdoor Unit

RXS25EBVMA

Heating Capacity

3.2 kW

10,900 Btu/h

Indoor Unit

Airflow Rate

Cooling: 8 - 9.5 (3 steps) m³/min

Heating: 8 - 9.5 (3 steps) m³/min

Dimensions (H x W x D)

200 x 900 x 620 mm

Sound Level

Cooling: 29 - 35 dB(A)

Heating: 29 - 35 dB(A)

Outdoor Unit

Dimensions (H x W x D)

550 x 765 x 285 mm

Piping Connections

Gas: Ø9.5 mm

Liquid: Ø6.4 mm

Weight

34 kg

Max. Piping Length

20 m

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB

Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB/6°CWB

Piping length: 7.5m
