FCRN Cooling Only Cassette Split Type (Below 100kg Series)

Back

Select /hp or model

Paired model:

Specifications

Model

Indoor Unit

FCRN50AV1

Cooling Capacity

5.42 kW

18,500 Btu/h

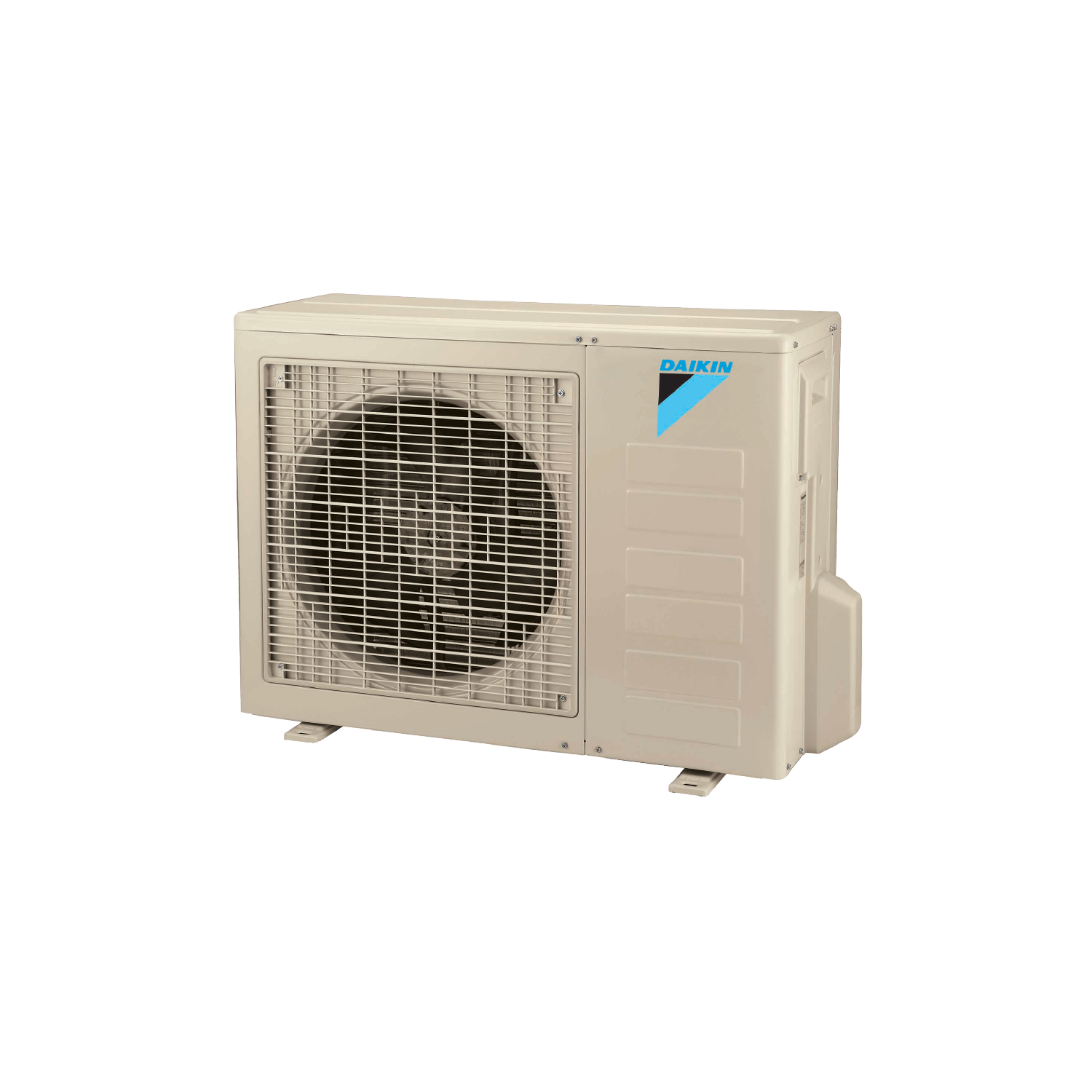

Outdoor Unit

RN50BV19

Power Consumption

Cooling: 1.76 kW

Indoor Unit

Airflow Rate

14.4 - 20.6 (3 steps)

Dimensions (H x W x D)

Panel: 55 x 950 x 950 mm

Body: 246 x 840 x 840 mm

Sound Level

29 - 38 dB(A)

Weight

Panel: 5 kg

Body: 22 kg

Outdoor Unit

Dimensions (H x W x D)

651 x 855 x 328 mm

Piping Connections

Gas: Ø12.7 mm

Liquid: Ø6.35 mm

Weight

43 kg

Max. Piping Length

30 m

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB

Piping length: 7.5m
