FHNQ Cooling Only Ceiling Suspended Split Type

Back

Select /hp or model

Paired model:

Specifications

Model

Indoor Unit

FHNQ40MV1

Cooling Capacity

3.8 kW

13,000 Btu/h

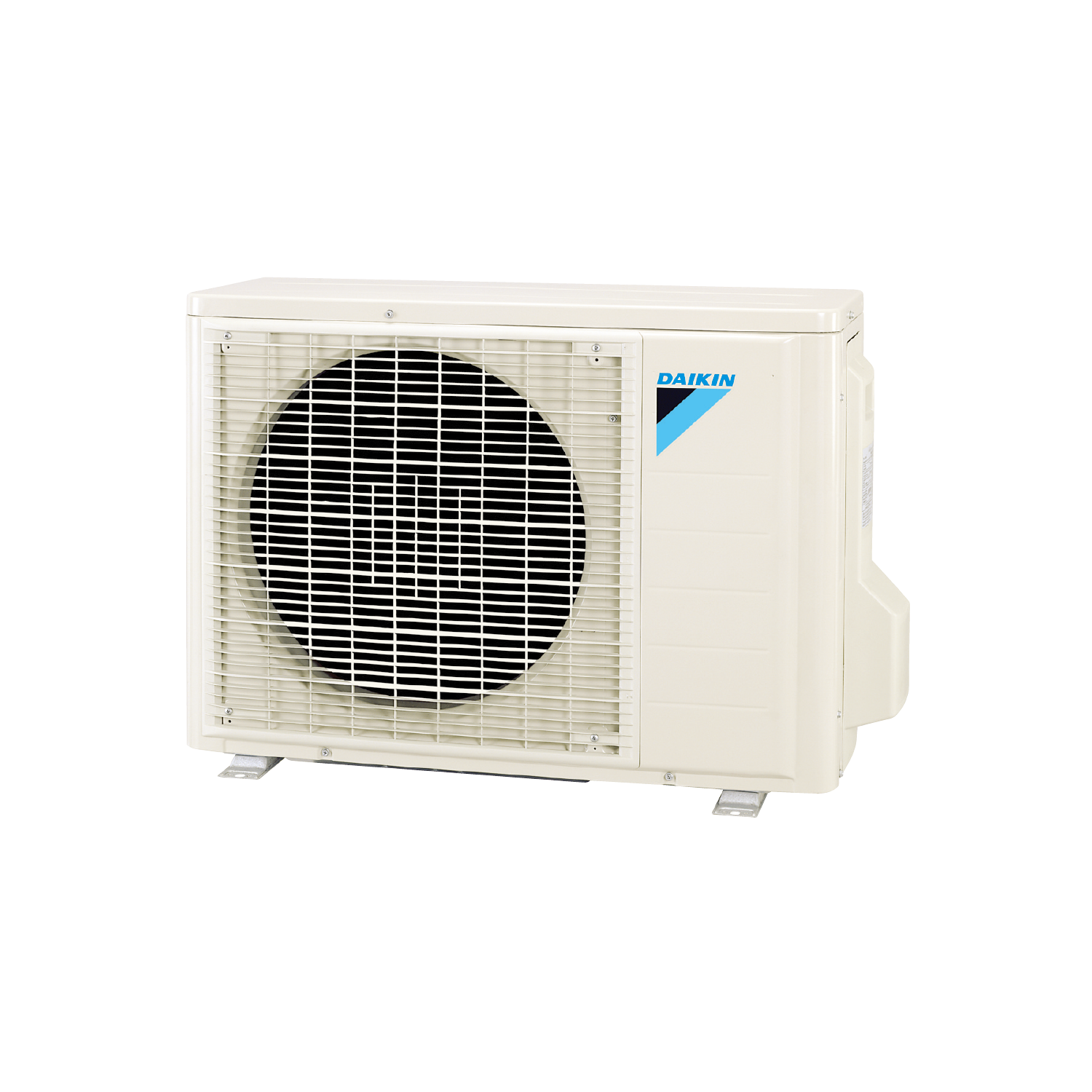

Outdoor Unit

RNQ40MV1

Power Consumption

Cooling: 1.58 kW

Indoor Unit

Airflow Rate

16 (2 steps)

Dimensions (H x W x D)

195 x 960 x 680 mm

Sound Level

39 - 43 dB(A)

Outdoor Unit

Dimensions (H x W x D)

550 x 765 x 285 mm

Piping Connections

Gas: Ø12.7 mm

Liquid: Ø6.4 mm

Weight

36 kg

Max. Piping Length

30 m

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB

Piping length: 7.5m
