FDBR Cooling Only Low Static Pressure Duct Split Type (Metal Blower A Series)

Back

Select /hp or model

Paired model:

Specifications

Model

Indoor Unit

FDBR25AXV1H

Cooling Capacity

2.78 kW

9,500 Btu/h

Outdoor Unit

RN25BV19

Power Consumption

Cooling: 0.961 kW

Indoor Unit

Airflow Rate

5.3 - 7.0 (3 steps)

Dimensions (H x W x D)

261 x 797 x 411 mm

Sound Level

30 - 36 dB(A)

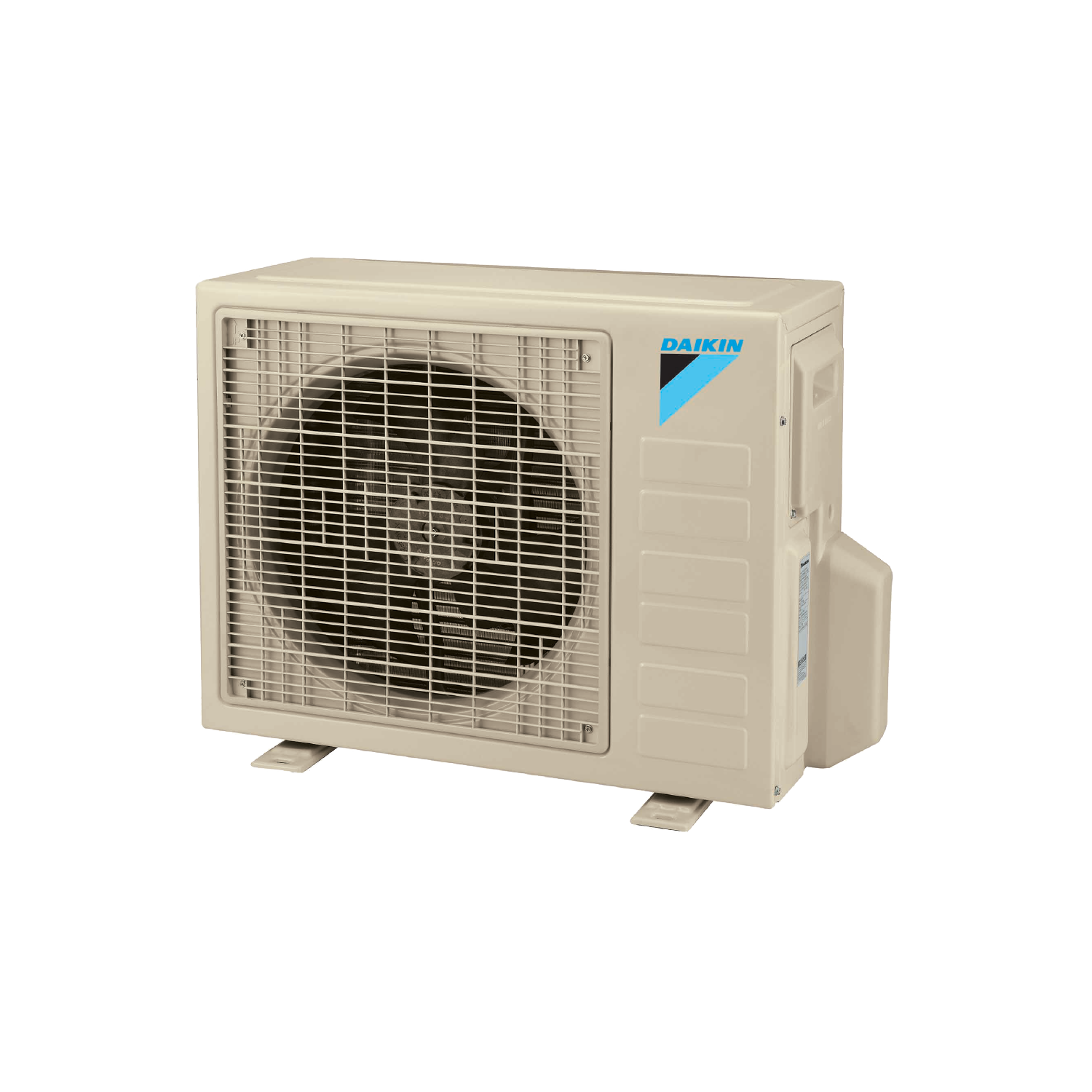

Outdoor Unit

Dimensions (H x W x D)

543 x 700 x 250 mm

Piping Connections

Gas: Ø9.52 mm

Liquid: Ø6.35 mm

Weight

34 kg

Max. Piping Length

12 m

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB

Piping length: 7.5m

Suitable for industrial and commercial use
