FFQ Cassette Split Type (Compact Series)
Specifications
Model
Indoor Unit
FFQ25BV1B9
Cooling Capacity
2.5 kW
8,550 Btu/h

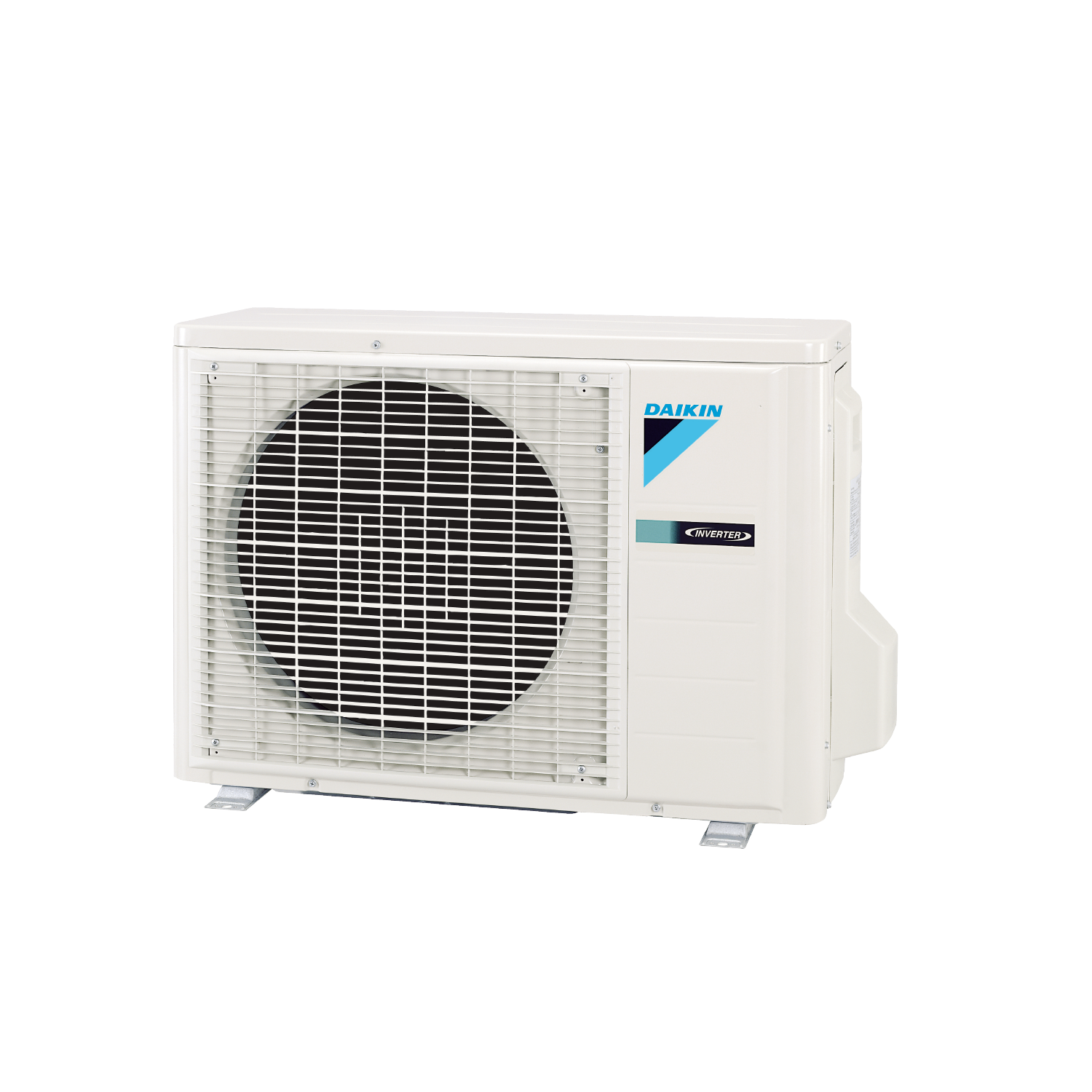

Outdoor Unit
RKS25EBVMA
Power Consumption
Cooling: 0.73 W
Indoor Unit
Airflow Rate
6.5 - 9 (2 steps)
Dimensions (H x W x D)
Panel: 55 x 700 x 700 mm
Body: 286 x 575 x 575 mm
Sound Level
24.5 - 29.5 dB(A)
Weight
Panel: 2.7 kg
Body: 17.5 kg
Outdoor Unit
Dimensions (H x W x D)
550 x 765 x 285 mm
Piping Connections
Gas: Ø9.5 mm
Liquid: Ø6.4 mm
Weight
34 kg
Max. Piping Length
20 m
Remarks
The data are based on the conditions below:
Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB
Piping length: 7.5m
