FAQ Inverter Cooling Only Wall Mounted Split Type

Back

Select /hp or model

Paired model:

Specifications

Model

Indoor Unit

FAQ100CVEA

Cooling Capacity

10 kW

34,100 Btu/h

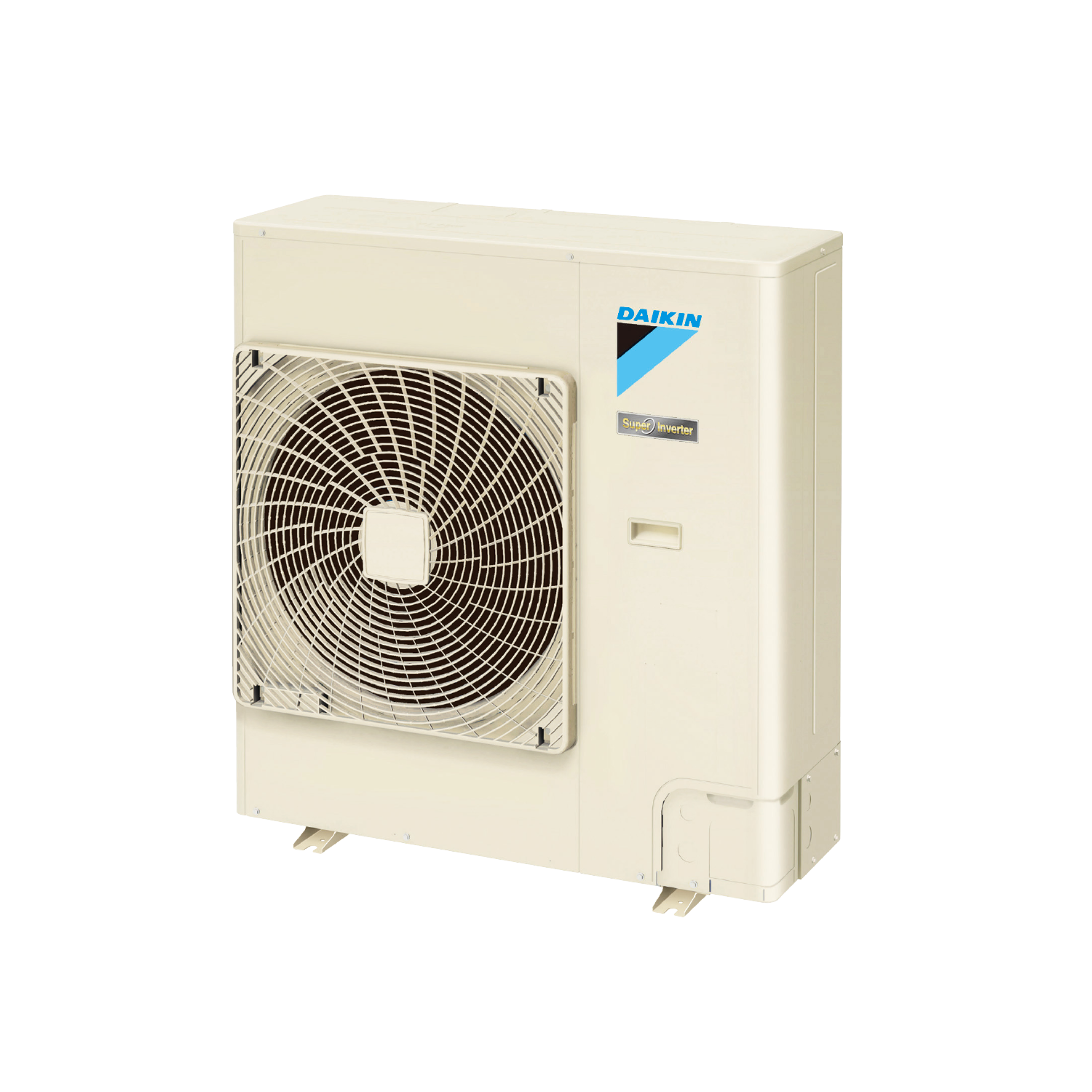

Outdoor Unit

RZR100MYM

Power Consumption

Cooling: 3.37 kW

Indoor Unit

Airflow Rate

19 - 26 (3 steps)

Dimensions (H x W x D)

340 x 1,200 x 240 mm

Sound Level

41 - 49 dB(A)

Outdoor Unit

Dimensions (H x W x D)

990 x 940 x 320 mm

Piping Connections

Gas: Ø15.9 mm

Liquid: Ø9.5 mm

Weight

73 kg

Max. Piping Length

50 m

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB

Piping length: 7.5m
