MXM R32 Inverter Heat Pump Multi Split Type (Multi NX Series) - CDXM Duct Multi-Split Type

Back

Select /hp or model

Paired model(s):

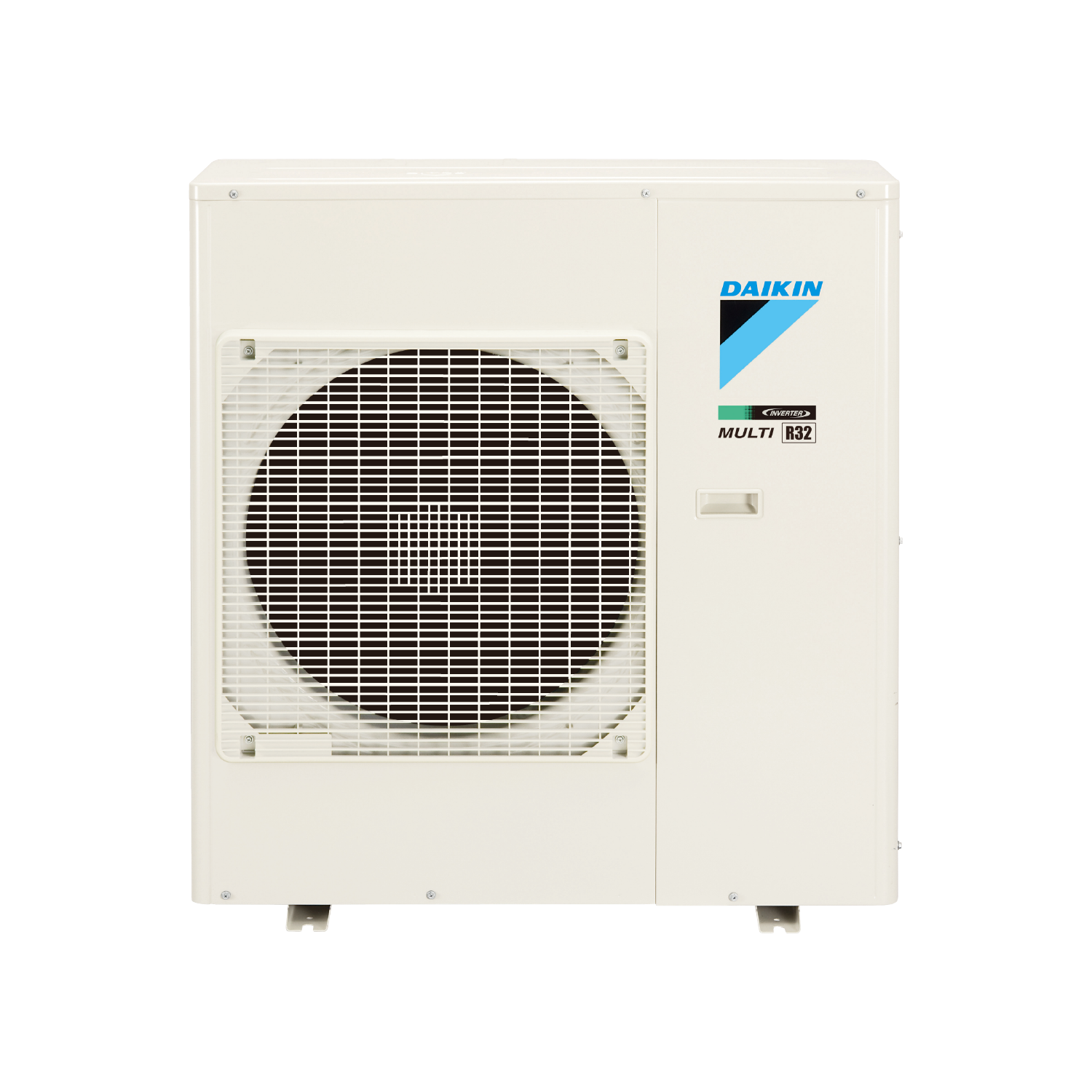

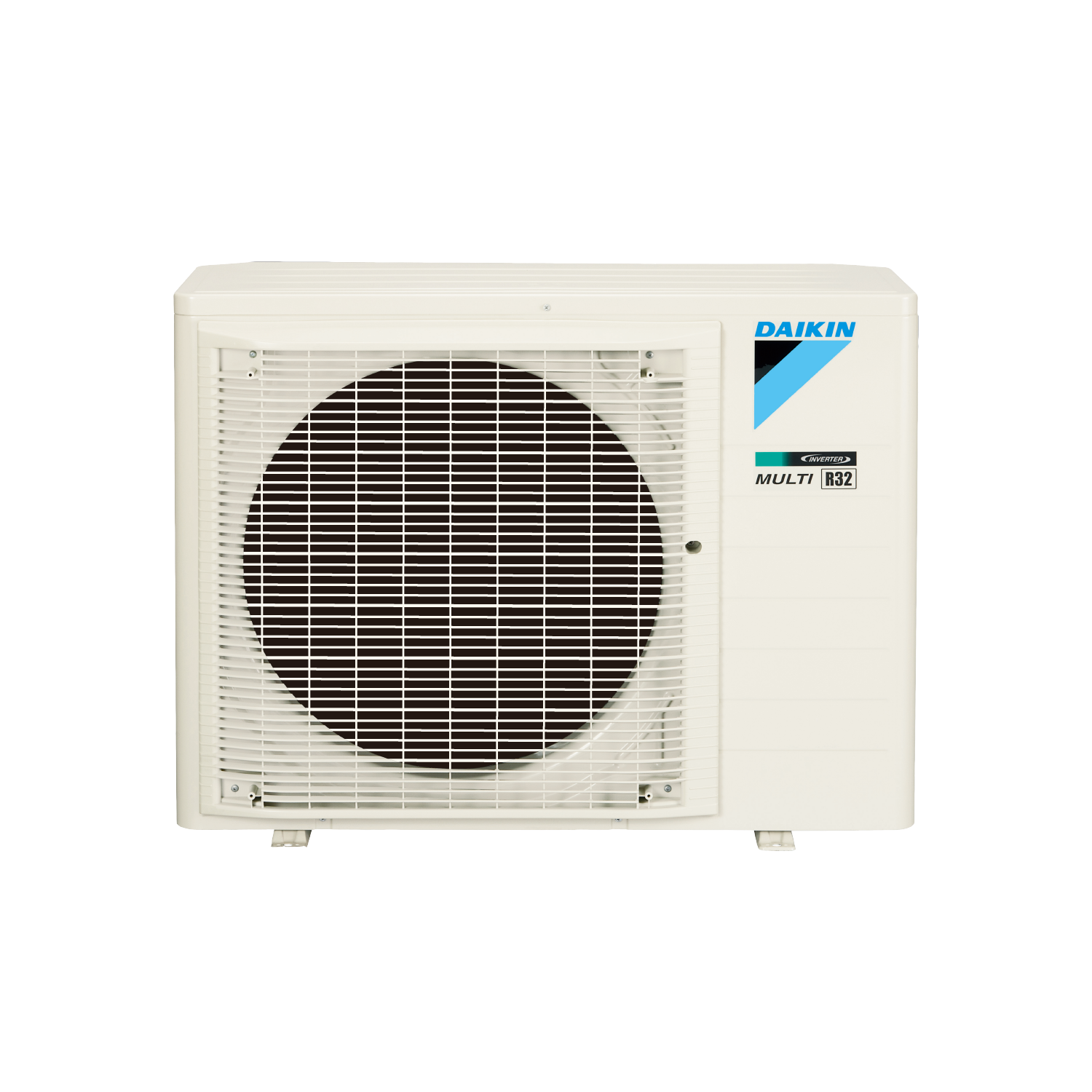

Outdoor unit - 3MXM52RVMA / 4MXM68RVMA / 4MXM80RVMA / 5MXM100RVMA

Specifications

Model

Indoor Unit

CDXM25RVMN

Cooling Capacity

3MXM52RVMA: 5.2 / 4MXM68RVMA: 6.8 / 4MXM80RVMA: 8 / 5MXM100RVMA:10 kW

Outdoor Unit

3MXM52RVMA / 4MXM68RVMA / 4MXM80RVMA / 5MXM100RVMA

Heating Capacity

3MXM52RVMA: 6.8 / 4MXM68RVMA: 8.6 / 4MXM80RVMA: 9.6 / 5MXM100RVMA: 11 kW

Indoor Unit

Airflow Rate

8 - 9.5 (5 steps)

Dimensions (H x W x D)

200 x 900 x 620 mm

Sound Level

29 - 35 dB(A)

Outdoor Unit

Dimensions (H x W x D)

3MXM52RVMA: 695 x 930 x 350 / 4MXM68RVMA: 695 x 930 x 350 / 4MXM80RVMA: 695 x 930 x 350 / 5MXM100RVMA: 990 x 940 x 320 mm

Weight

3MXM52RVMA: 53 / 4MXM68RVMA: 56 / 4MXM80RVMA: 61 / 5MXM100RVMA: 83 kg

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB

Piping length: 7.5m

Consumers shall consult supplier, agents or his authorized technicians for installation, inspection and maintenance for this type of product. Consumers shall pay attention to installation height and minimum floor area for such product’s indoor unit installation. R32 is classified as mildly flammable refrigerant according to ASHRAE STANDARD 34.

For the selection of model and connection method, please refer to product catalogue.
