FTXM R32 Inverter Heat Pump Wall Mounted Split Type (Hybrid Cooling Premium Series)

Back

Daikin Hybrid Cooling series allows you to control both humidity and temperature at the same time, creating the most comfortable environment and saving energy at the same time.

Product features

• Innovative “Hybrid Cooling” technology, creating the most comfortable balance between temperature and humidity

• Dust Collection Filter (PM 2.5), removing very small particulate

• 0.5°C temperature adjustment, setting your perfect temperature

• Crystal panel, creating a stylish new look for your home

Select /hp or model

Paired model:

Outdoor unit - RXM22SV1N

Product Details

Specifications

Model

Indoor Unit

FTXM22SV1N

Cooling Capacity

2.2 kW

7,500 Btu/h

Power Consumption

Cooling: 388 W

Cooling: DUMP kW

Heating: 590 W

Heating: DUMP kW

Cooling Seasonal Performance Factor (CSPF)

DUMP

Power Supply

DUMP

Weight

DUMP kg

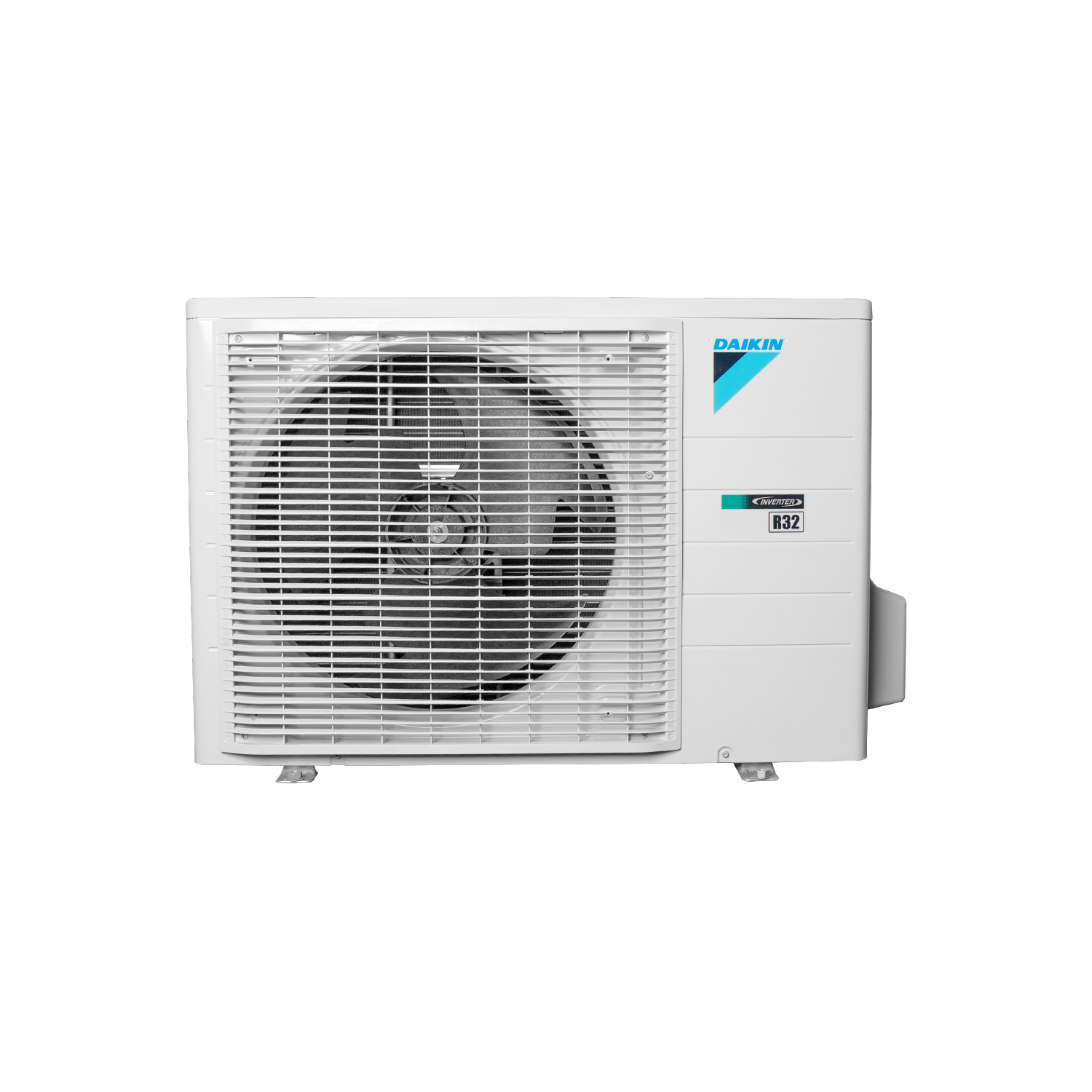

Outdoor Unit

RXM22SV1N

Heating Capacity

2.7 kW

9,200 Btu/h

Energy Label

Heating Seasonal Performance Factor (HSPF)

DUMP

Dimensions (H x W x D)

DUMP mm

Colour

DUMP

Indoor Unit

Airflow Rate

DUMP

Cooling: 4.4 - 11.7 (5 steps) m³/min

Heating: 5.2 - 11.2 (5 steps) m³/min

Sound Level

DUMP dB(A)

Cooling: 22 - 44 dB(A)

Heating: 22 - 41 dB(A)

Weight

Panel: DUMP kg

Body: DUMP kg

External Static Pressure

DUMP Pa

Dimensions (H x W x D)

285 x 770 x 226 mm

Panel: DUMP mm

Body: DUMP mm

Duct Connections

DUMP mm

Outdoor Unit

Dimensions (H x W x D)

595 x 845 x 300 mm mm

Sound Level

DUMP dB(A)

Heating: DUMP dB(A)

Cooling: DUMP dB(A)

External Static Pressure

DUMP Pa

Max. Height Difference

DUMP m

Weight

38 kg

Piping Connections

Drain: DUMP mm

Gas: Ø9.5 mm

Liquid: Ø6.4 mm

High/Low Pressure Gas: DUMP mm

Max. Piping Length

20 m m

Accessories/Functions

Remote Controller Model (Wired)

DUMP

Smart Control

DUMP

Filter

DUMP

DUMP

DUMP

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB

Heating: indoor temp. 20°CDB/15°CWB; outdoor temp. 7°CDB/6°CWB

Piping length: 7.5m

Consumers shall consult supplier, agents or his authorized technicians for installation, inspection and maintenance for this type of product. Consumers shall pay attention to installation height and minimum floor area for such product’s indoor unit installation. R32 is classified as mildly flammable refrigerant according to ASHRAE STANDARD 34.

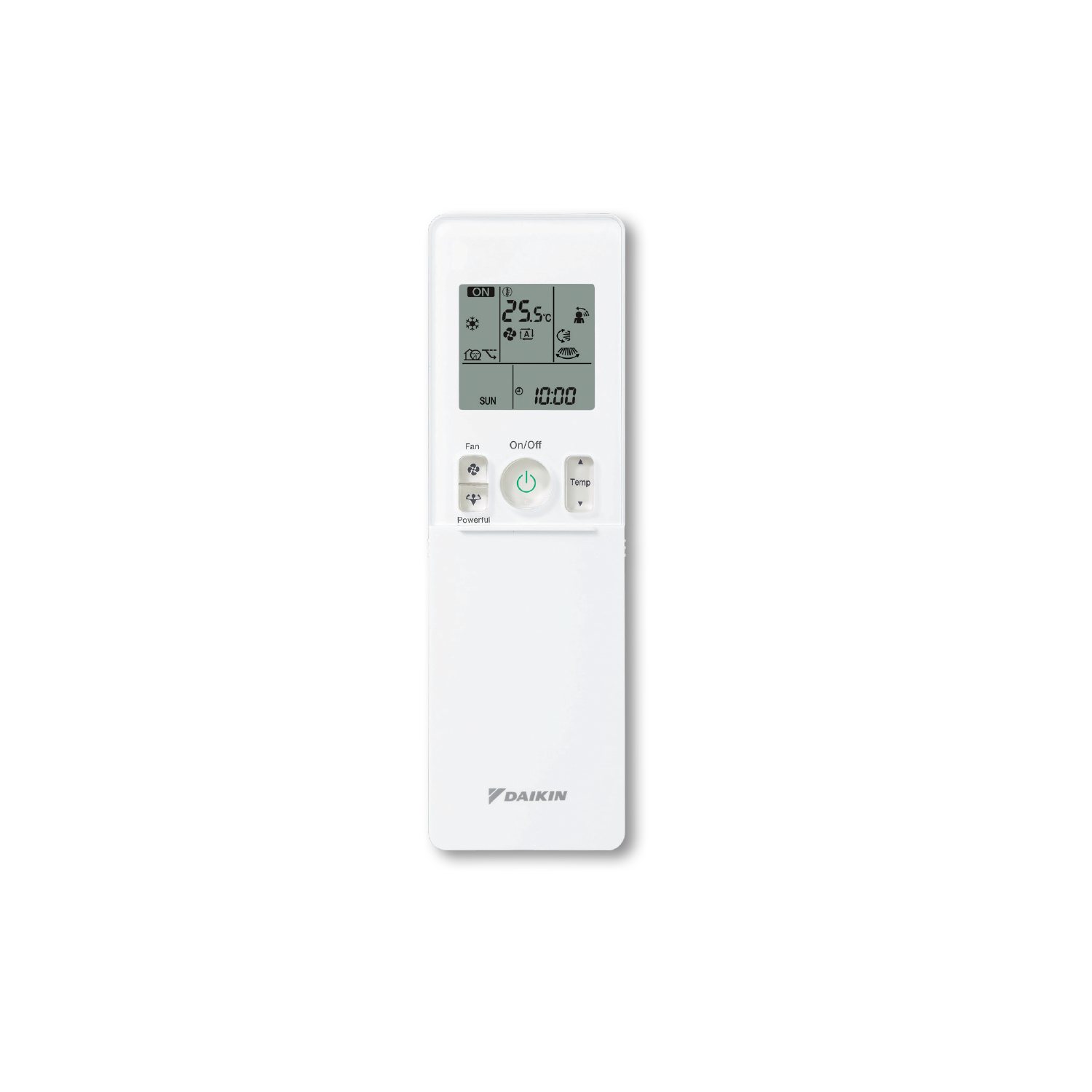

Remote controller model: ARC466A26
