FTXS Inverter Heat Pump Wall Mounted Split Type

Back

Select /hp or model

Paired model:

Specifications

Model

Indoor Unit

FTXS25LVMN

Cooling Capacity

2.5 kW

8,500 Btu/h

Power Consumption

Cooling: 540 W

Heating: 770 W

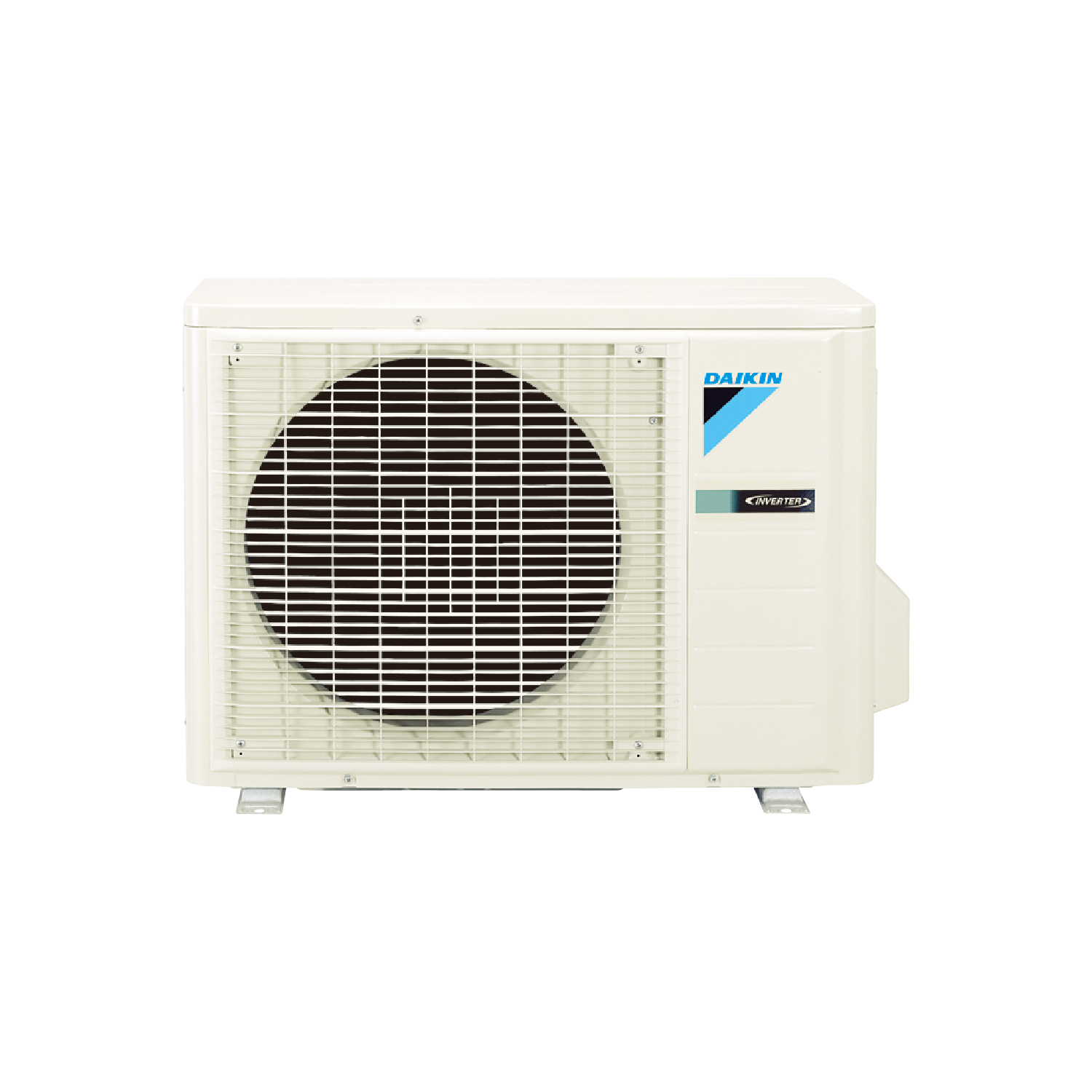

Outdoor Unit

RXS25LVMN

Heating Capacity

3.4 kW

11,600 Btu/h

Energy Label

Indoor Unit

Airflow Rate

Cooling: 5.1 - 9.5 (五速) m³/min

Heating: 6.6 - 10.5 (5 steps) m³/min

Dimensions (H x W x D)

295 x 800 x 215 mm

Sound Level

Cooling: 22 - 40 dB(A)

Heating: 25 - 40 dB(A)

Outdoor Unit

Dimensions (H x W x D)

550 x 765 x 285 mm

Piping Connections

Gas: Ø9.5 mm

Liquid: Ø6.4 mm

Weight

34 kg

Max. Piping Length

20 m

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB

Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB/6°CWB

Piping length: 7.5m

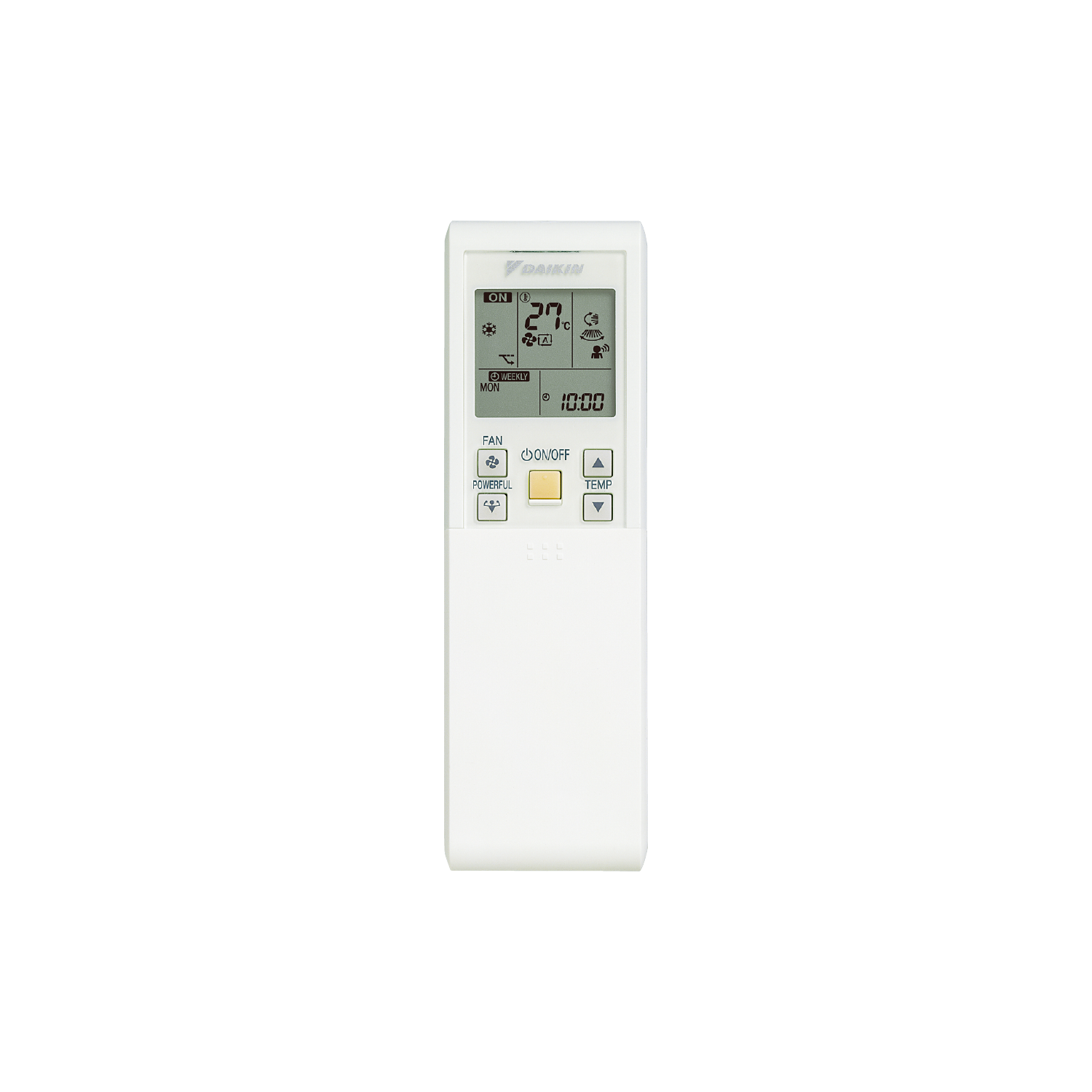

Remote controller model: ARC452A4
