FTKC R32 Inverter Cooling Only Wall Mounted Split Type (Coanda Series)

Back

Daikin Coanda series creates airflow along the ceiling, allowing the air to spread out across the whole room without creating uncomfortable drafts.

Product features

• Coanda panel, quickly achieving a comfortable temperature with a gentle airflow

• Up to 9-metre airflow, delivering air evenly to every corner in the room*

• Intelligent Eye, controlling air conditioner operation according to human movement in the room

• Titanium Apatite Deodorising Filter, absorbing odours and allergens

*Depends on installation circumstances and operation

Select /hp or model

Paired model:

Outdoor unit - RKC25TAV1N

Specifications

Model

Indoor Unit

FTKC25TAV1N

Cooling Capacity

2.5 kW

8,500 Btu/h

Energy Label

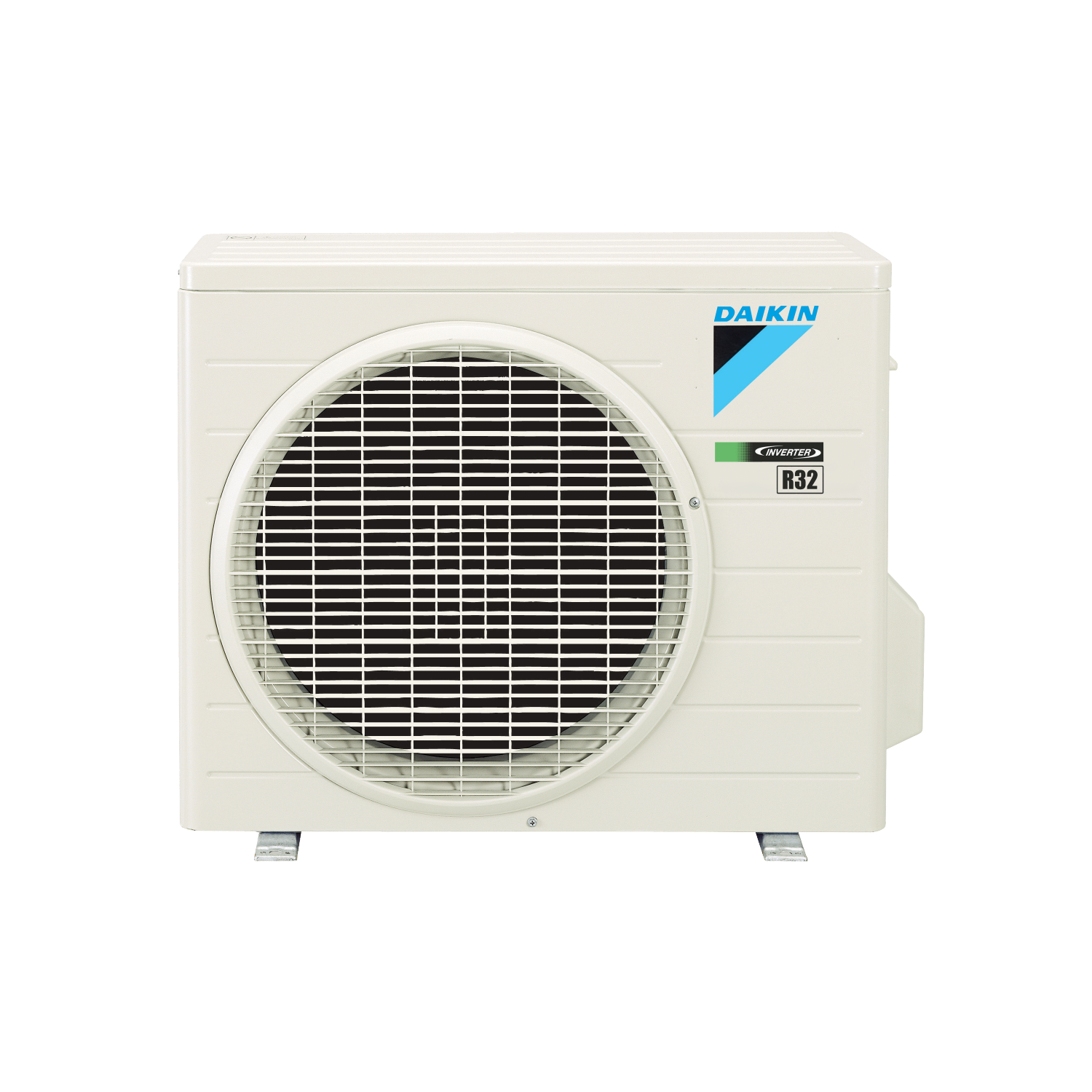

Outdoor Unit

RKC25TAV1N

Power Consumption

Cooling: 680 W

Indoor Unit

Airflow Rate

5.9 - 9.9 (5 steps)

Dimensions (H x W x D)

285 x 770 x 226 mm

Sound Level

19 - 39 dB(A)

Outdoor Unit

Dimensions (H x W x D)

550 x 658 x 275 mm

Piping Connections

Gas: Ø9.5 mm

Liquid: Ø6.4 mm

Weight

23 kg

Max. Piping Length

15 m

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB

Piping length: 7.5m

Consumers shall consult supplier, agents or his authorized technicians for installation, inspection and maintenance for this type of product. Consumers shall pay attention to installation height and minimum floor area for such product’s indoor unit installation. R32 is classified as mildly flammable refrigerant according to ASHRAE STANDARD 34.

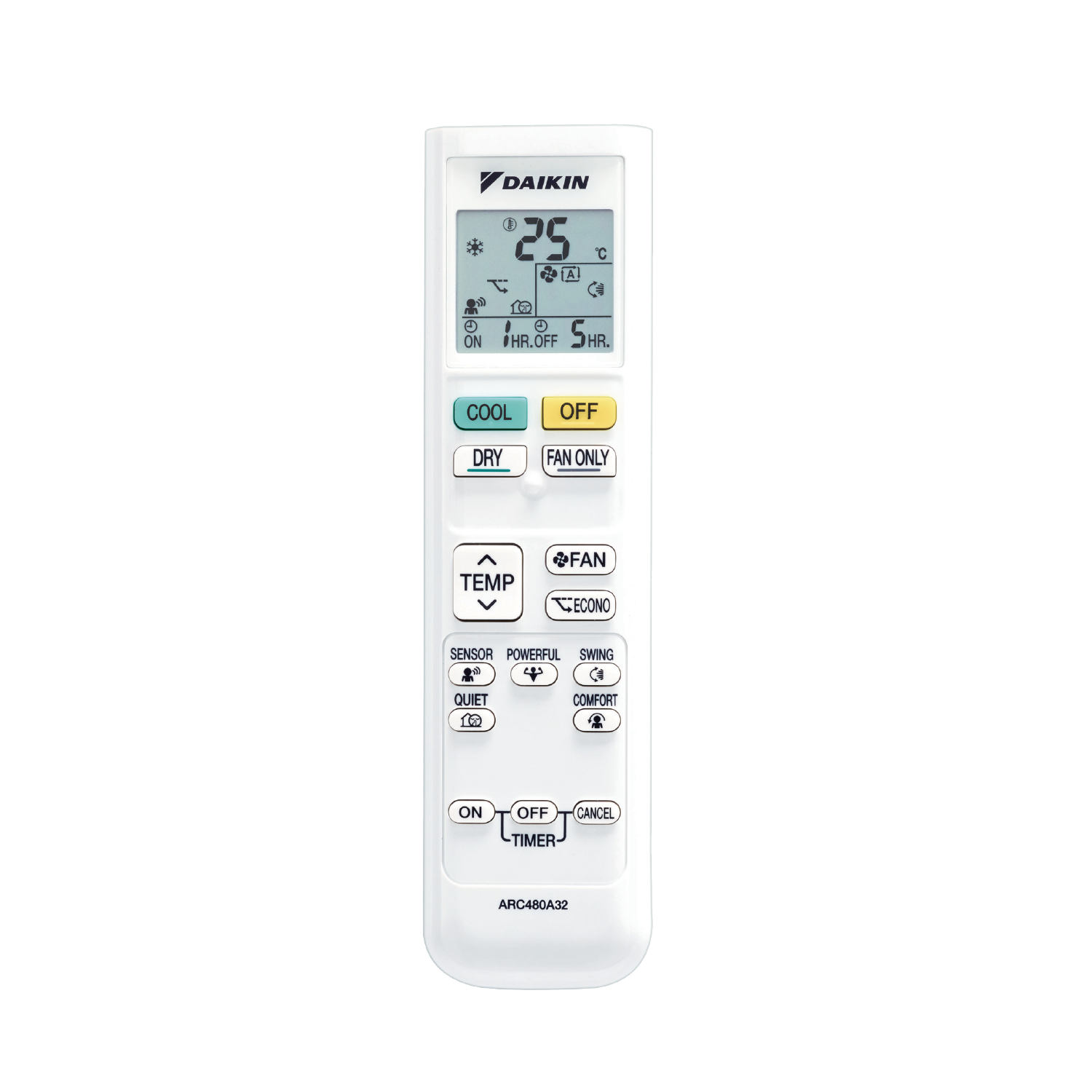

Remote controller model: ARC480A32
