FTXA Inverter Heat Pump Wall Mounted Split Type (420 Series)

Back

Daikin 420 series, the petite and sleek outdoor unit has a height of only 420mm is the perfect fit for your tiny window platform.

Product features

• Petite outdoor unit, freeing you from the need for scaffolding at the time of installation*

• ECO+ mode, an intelligent feature ensuring optimum energy consumption

• Catechin Air Filter, deactivating bacteria and virus

• Power-Airflow Dual Flaps, circulating air to the corners of even large spaces

*Depends on the circumstances of the site

Select /hp or model

Paired model:

Outdoor unit - RXA25AV1H

Specifications

Model

Indoor Unit

FTXA25BV1H

Cooling Capacity

2.58 kW

8,800 Btu/h

Power Consumption

Cooling: 785 W

Heating: 884 W

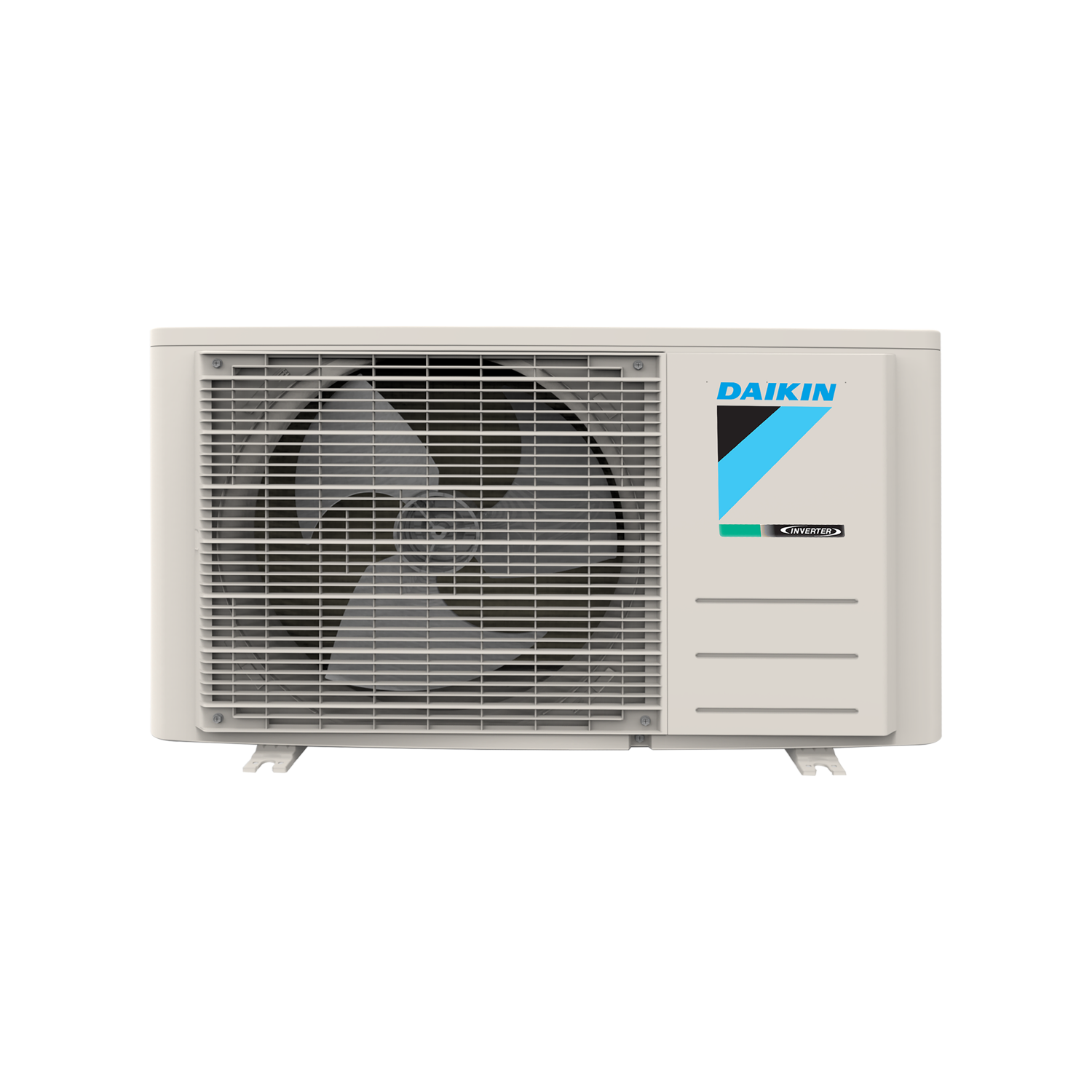

Outdoor Unit

RXA25AV1H

Heating Capacity

3.22 kW

11,000 Btu/h

Energy Label

Indoor Unit

Airflow Rate

Cooling: 6.0 - 9.6 (3 steps) m³/min

Heating: 6.0 - 9.6 (3 steps) m³/min

Dimensions (H x W x D)

288 x 785 x 250 mm

Sound Level

Cooling: 22 - 38 dB(A)

Heating: 22 - 38 dB(A)

Outdoor Unit

Dimensions (H x W x D)

420 x 765 x 291 mm

Piping Connections

Gas: Ø9.5 mm

Liquid: Ø6.4 mm

Weight

24 kg

Max. Piping Length

20 m

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB

Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB/6°CWB

Piping length: 7.5m

Remote controller model: ARC485A6
