FAA R32 Inverter Cooling Only Mounted Split Type

Back

Select /hp or model

Paired model:

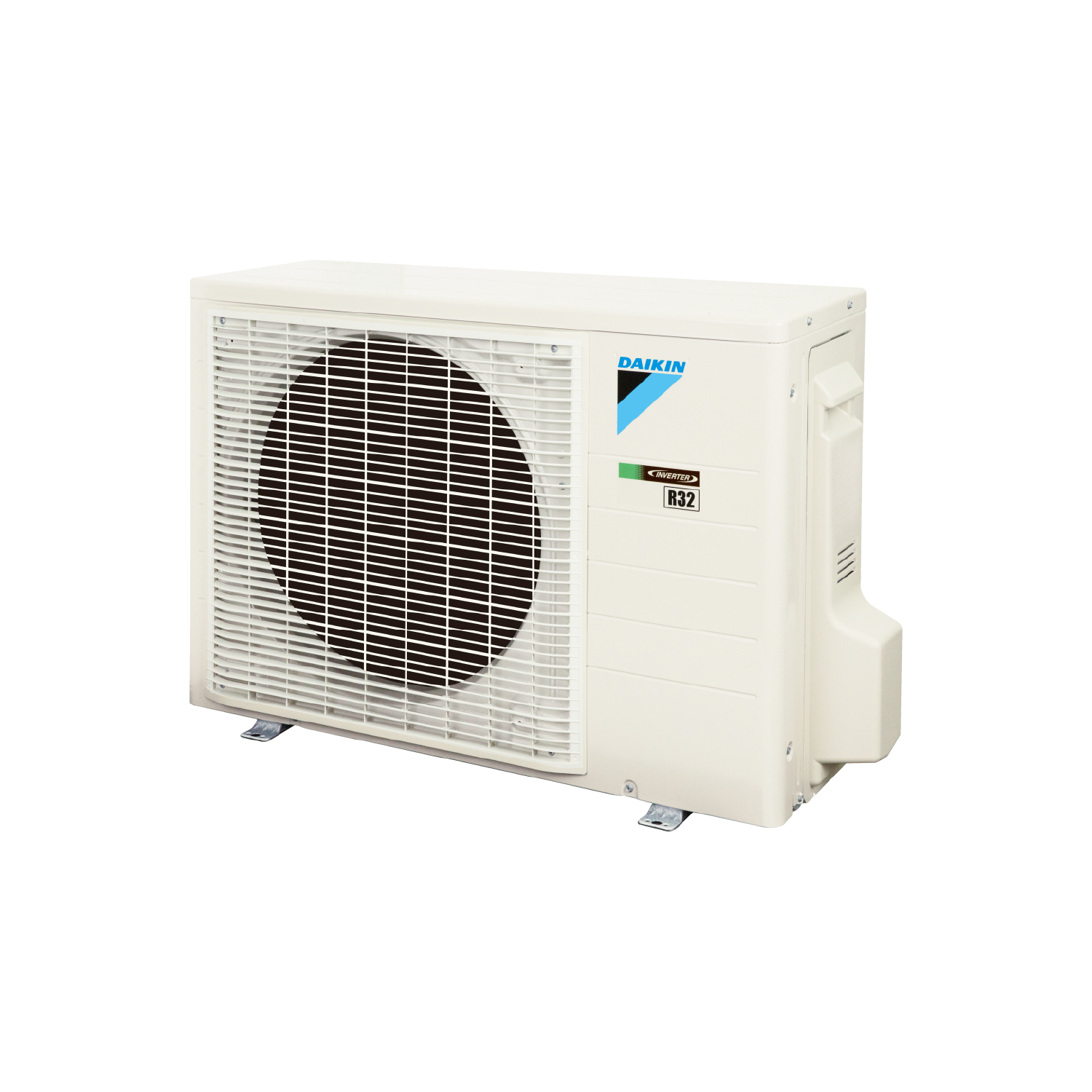

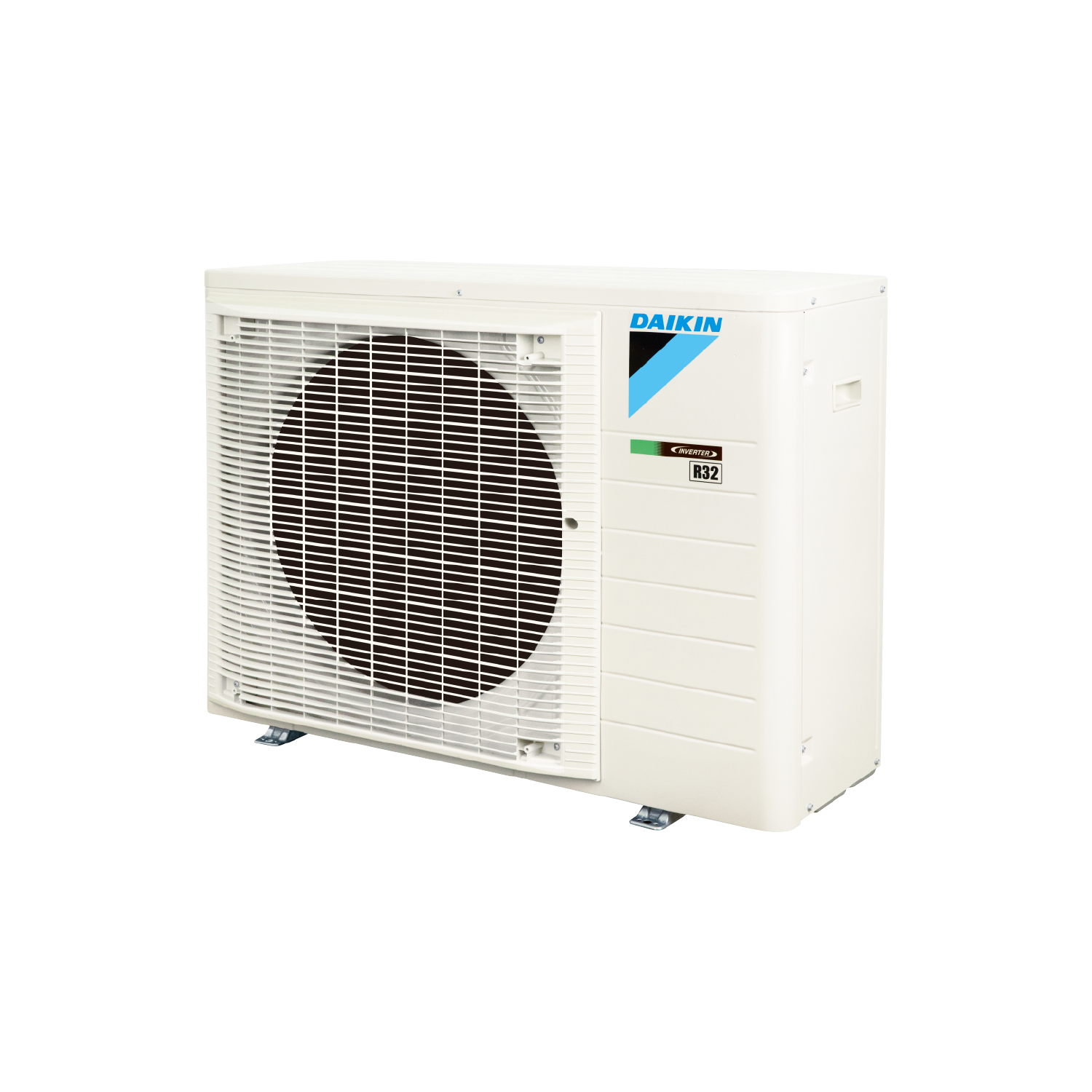

Outdoor unit - RZF76CVMN / RZF76CYMN

Specifications

Model

Indoor Unit

FAA76BVMAN

Cooling Capacity

7.6 kW

25,900 Btu/h

Outdoor Unit

RZF76CVMN / RZF76CYMN

Power Consumption

Cooling: 2.3 kW

Indoor Unit

Airflow Rate

12.9 - 16.9 (3 steps)

Dimensions (H x W x D)

290 x 1,050 x 238 mm

Sound Level

40 - 45 dB(A)

Outdoor Unit

Dimensions (H x W x D)

RZF76CVMN: 595 x 845 x 300 / RZF76CYMN: 695 x 930 x 350 mm mm

Piping Connections

Gas: Ø15.9 mm

Liquid: Ø9.5 mm

Weight

RZF76CVMN: 41 / RZF76CYMN: 48 kg

Max. Piping Length

50 m

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB

Piping length: 7.5m

Consumers shall consult supplier, agents or his authorized technicians for installation, inspection and maintenance for this type of product. Consumers shall pay attention to installation height and minimum floor area for such product’s indoor unit installation. R32 is classified as mildly flammable refrigerant according to ASHRAE STANDARD 34.
