3MXS/4MXS Inverter Heat Pump Multi Split Type (Super Multi NX Series) - CDXS Duct Multi-Split Type

Back

Select /hp or model

Paired model(s):

Specifications

Model

Indoor Unit

CDXS25EAVMA

Cooling Capacity

3MXS52LVMA9: 5.2 / 3MXS68LVMA9: 6.8 / 4MXS80LVMA9: 8 kW

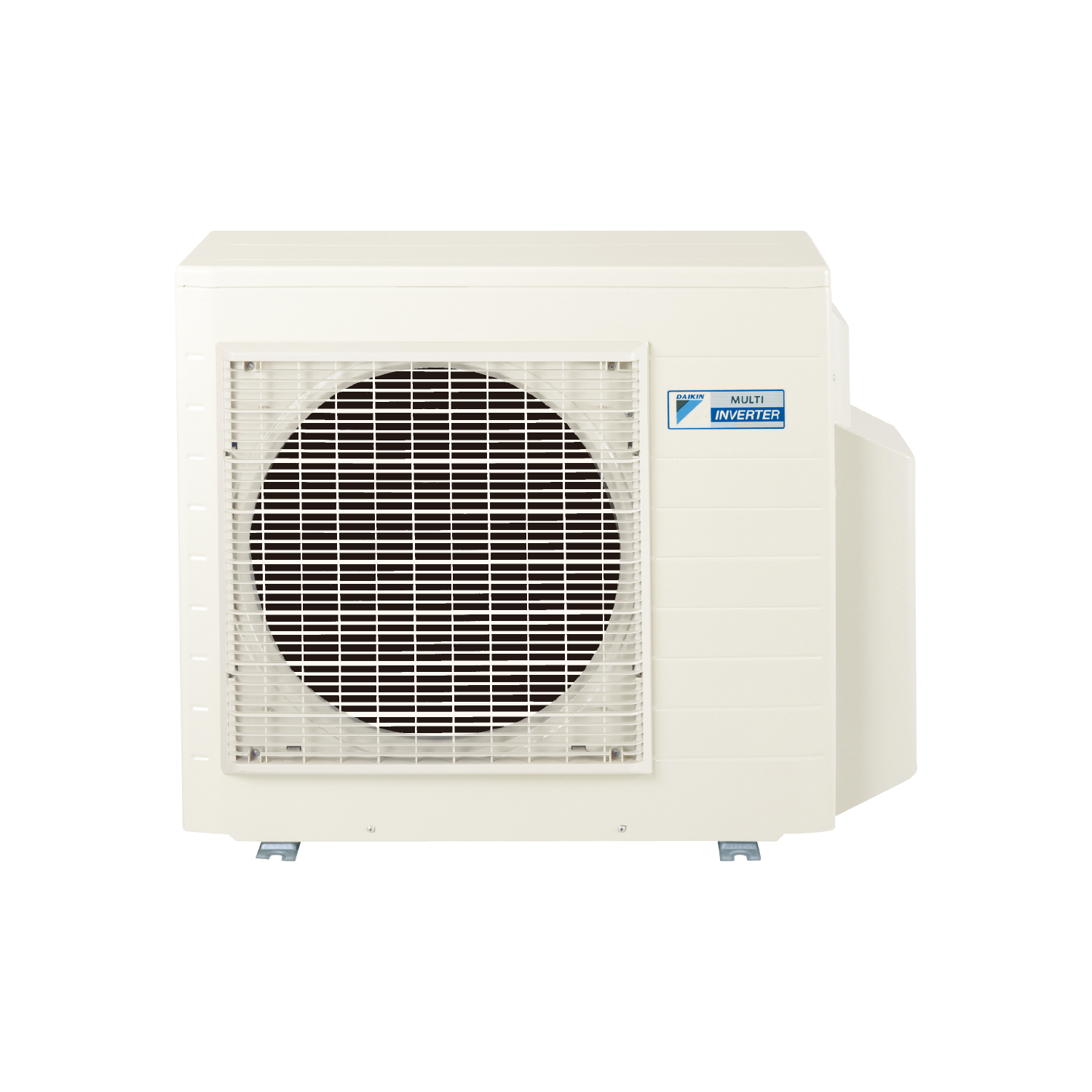

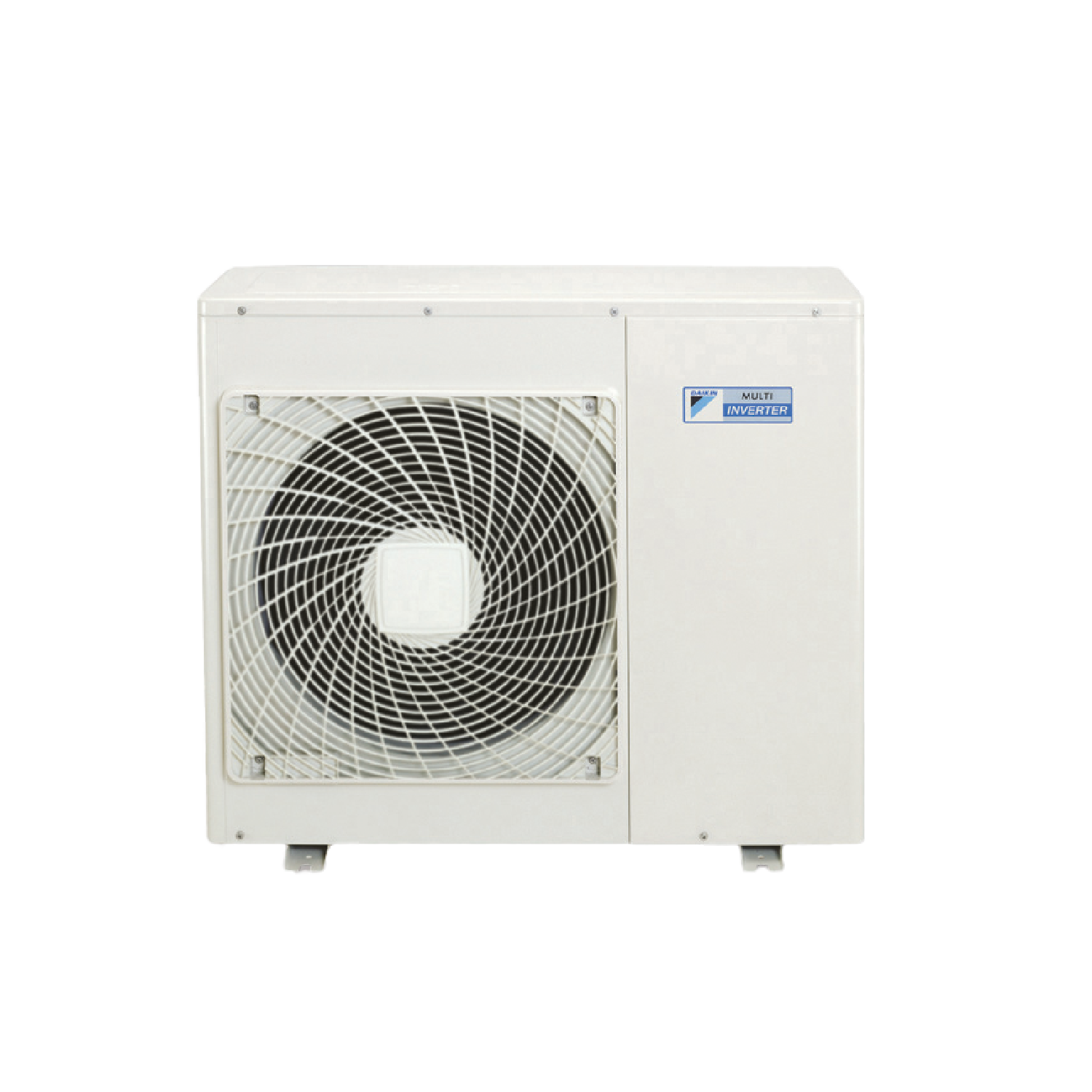

Outdoor Unit

3MXS52LVMA9 / 3MXS68LVMA9 / 4MXS80LVMA9

Heating Capacity

3MXS52LVMA9: 6.8 / 3MXS68LVMA9: 8.6 / 4MXS80LVMA9: 9.6 kW

Indoor Unit

Airflow Rate

Cooling: 7.3 - 8.7 (5 steps) m³/min

Heating: 7.3 - 8.7 (5 steps) m³/min

Dimensions (H x W x D)

200 x 700 x 620 mm

Sound Level

Cooling: 29 - 35 dB(A)

Heating: 29 - 35 dB(A)

Outdoor Unit

Dimensions (H x W x D)

3MXS52LVMA9: 735 x 936 x 300 / 3MXS68LVMA9: 735 x 936 x 300 / 4MXS80LVMA9: 770 x 900 x 320 mm

Weight

3MXS52LVMA9: 49 / 3MXS68LVMA9: 58 / 4MXS80LVMA9: 72 kg

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB

Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB/6°CWB

Piping length: 5m

For the selection of model and connection method, please refer to product catalogue.
