FBQ Inverter Heat Pump Middle Static Pressure Duct Split Type (Plastic Blower B Series)

Back

Select /hp or model

Paired model:

Specifications

Model

Indoor Unit

FBQ50BV1A

Cooling Capacity

5 kW

17,100 Btu/h

Power Consumption

Cooling: 1.98 kW

Heating: 1.93 kW

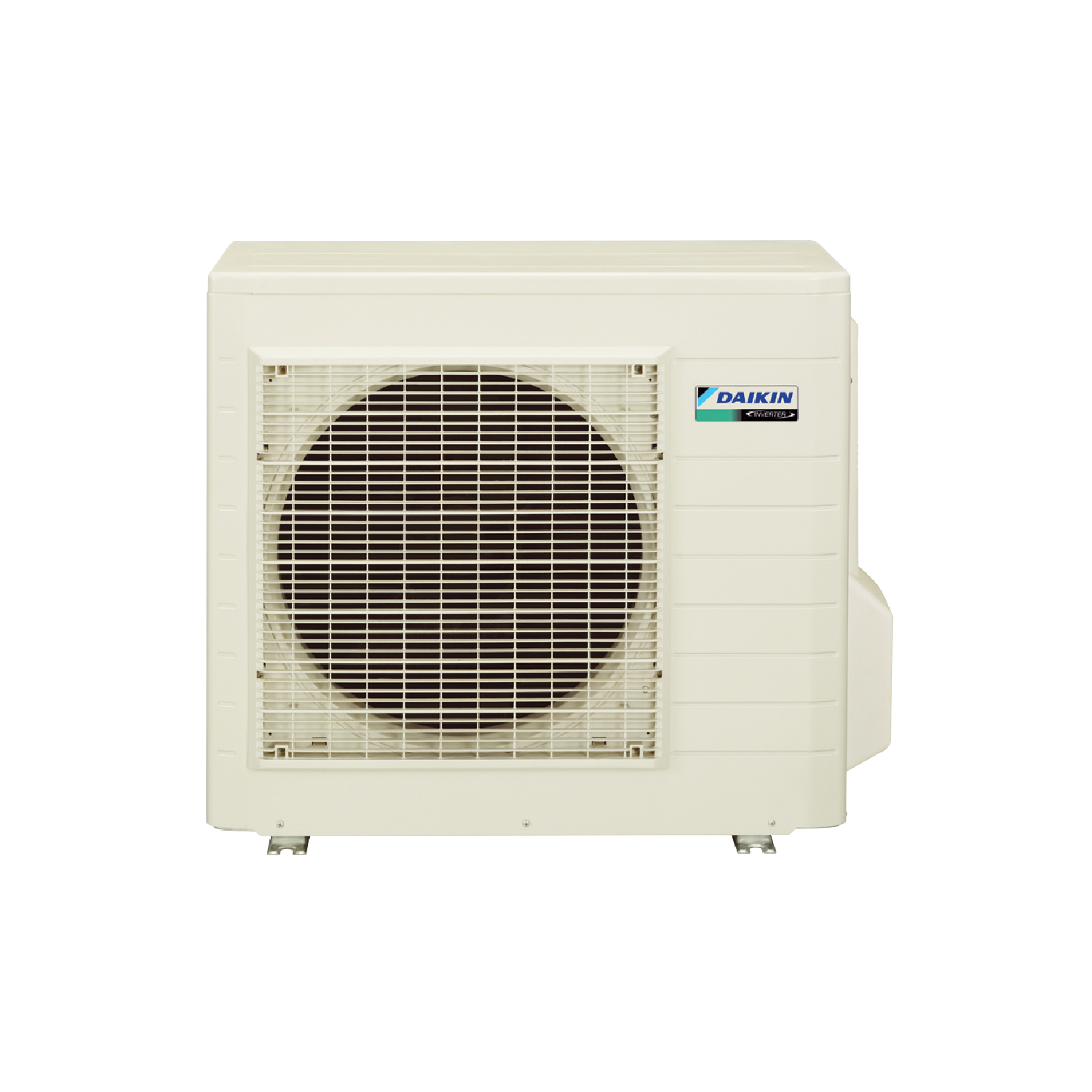

Outdoor Unit

RXS50FVMA

Heating Capacity

6 kW

20,500 Btu/h

Indoor Unit

Airflow Rate

Cooling: 9 - 13 (2 steps) m³/min

Heating: 10 - 14 (2 steps) m³/min

Dimensions (H x W x D)

300 x 700 x 800 mm

Sound Level

Cooling: 29 - 33 dB(A)

Heating: 29 - 33 dB(A)

Outdoor Unit

Dimensions (H x W x D)

735 x 825 x 300 mm

Piping Connections

Gas: Ø12.7 mm

Liquid: Ø6.4 mm

Weight

48 kg

Max. Piping Length

30 m

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB

Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB/6°CWB

Piping length: 7.5m
