FTN Cooling Only Wall Mounted Split Type (For Macau Market)

Back

Select /hp or model

Paired model:

Specifications

Model

Indoor Unit

FTN25AXV1H

Cooling Capacity

2.64 kW

9,000 Btu/h

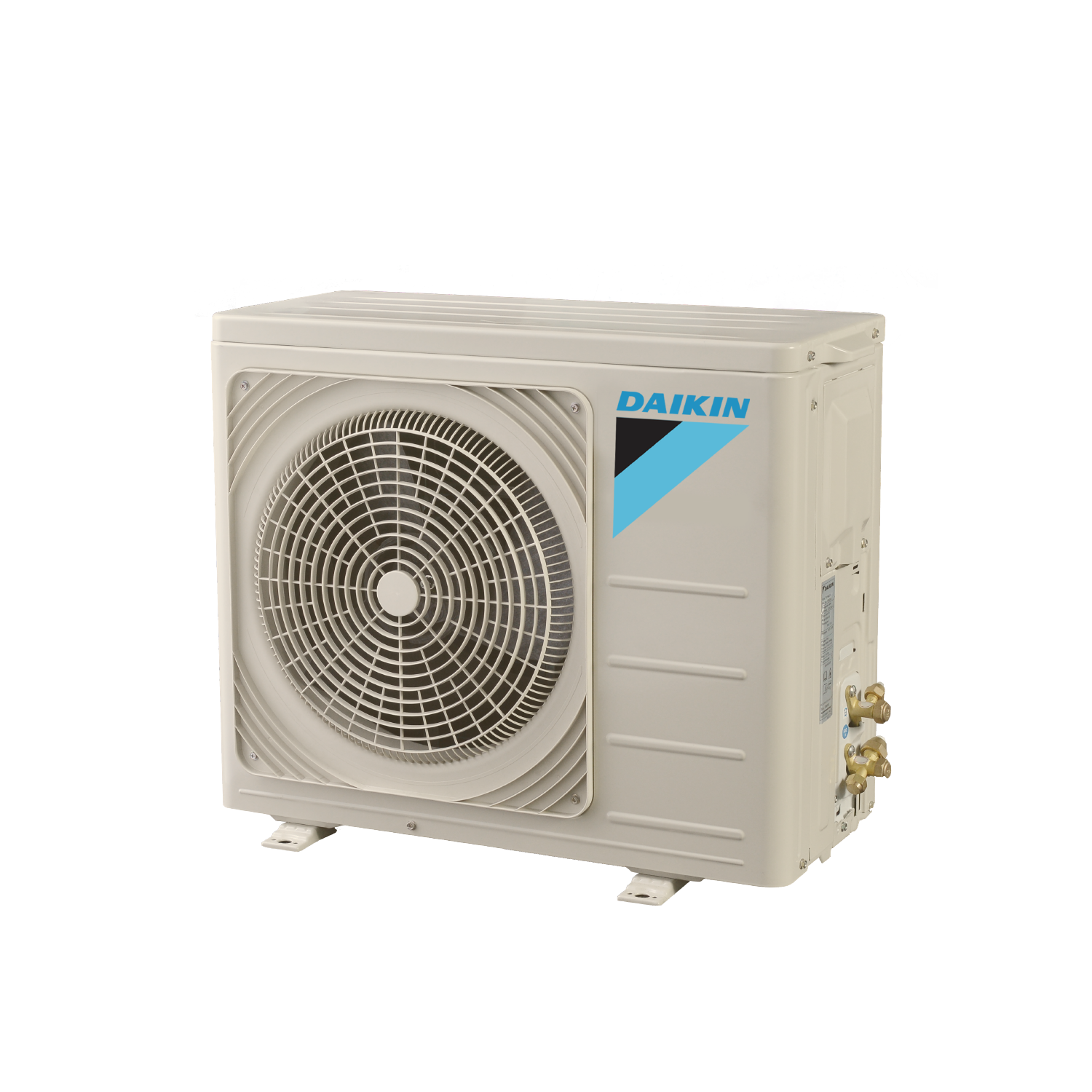

Outdoor Unit

RN25AXV1H

Power Consumption

Cooling: 870 W

Indoor Unit

Airflow Rate

6.3 - 9.6 (3 steps)

Dimensions (H x W x D)

288 x 800 x 206 mm

Sound Level

25 - 37 dB(A)

Outdoor Unit

Dimensions (H x W x D)

485 x 566 x 256 mm

Piping Connections

Gas: Ø9.52 mm

Liquid: Ø6.35 mm

Weight

21 kg

Max. Piping Length

20 m

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB

Piping length: 7.5m

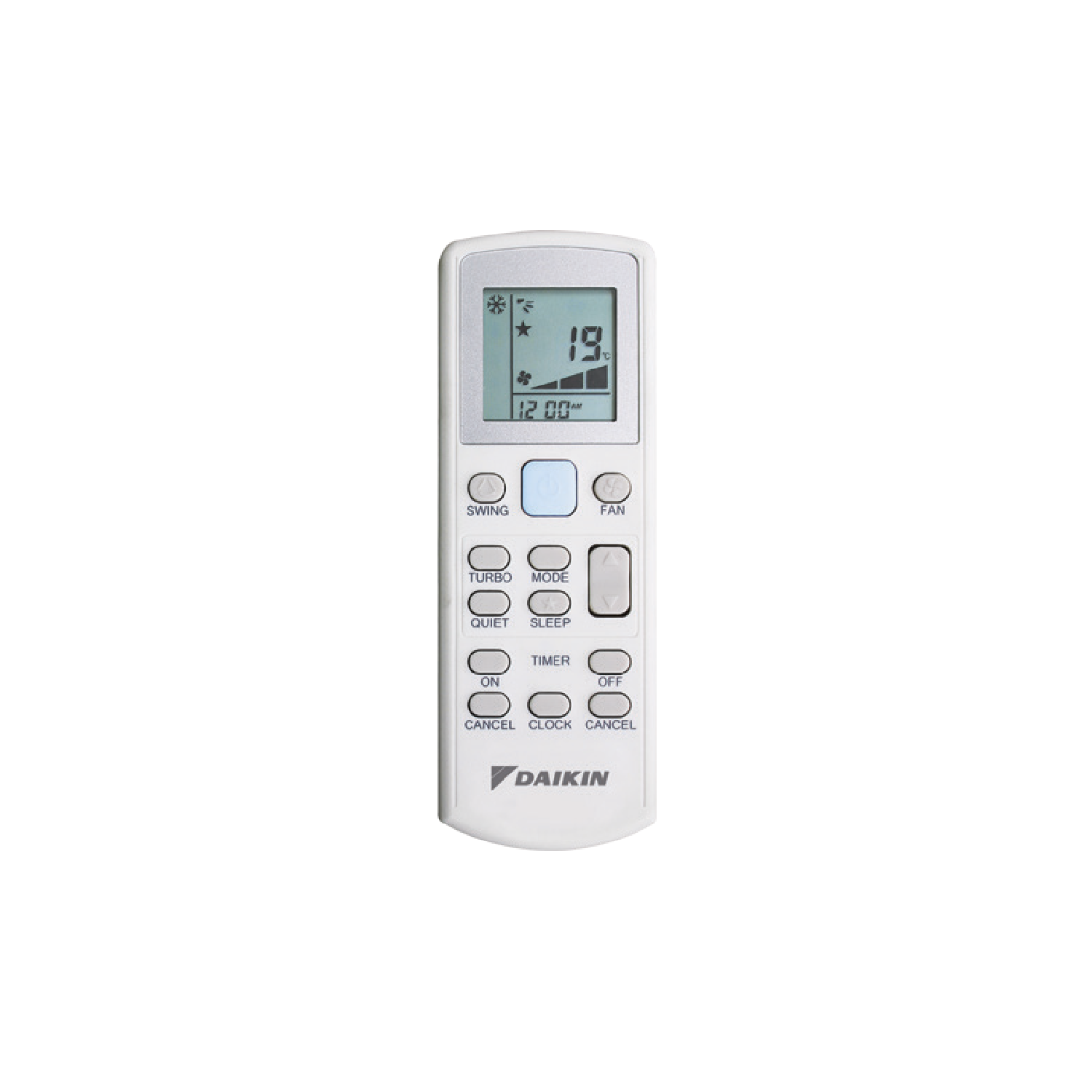

Remote controller model: BRC52A62
