FCQ Inverter Cooling Only Cassette Split Type (Round Flow Series)

Back

Select /hp or model

Paired model:

Specifications

Model

Indoor Unit

FCQ50KAVEA

Cooling Capacity

5 kW

17,100 Btu/h

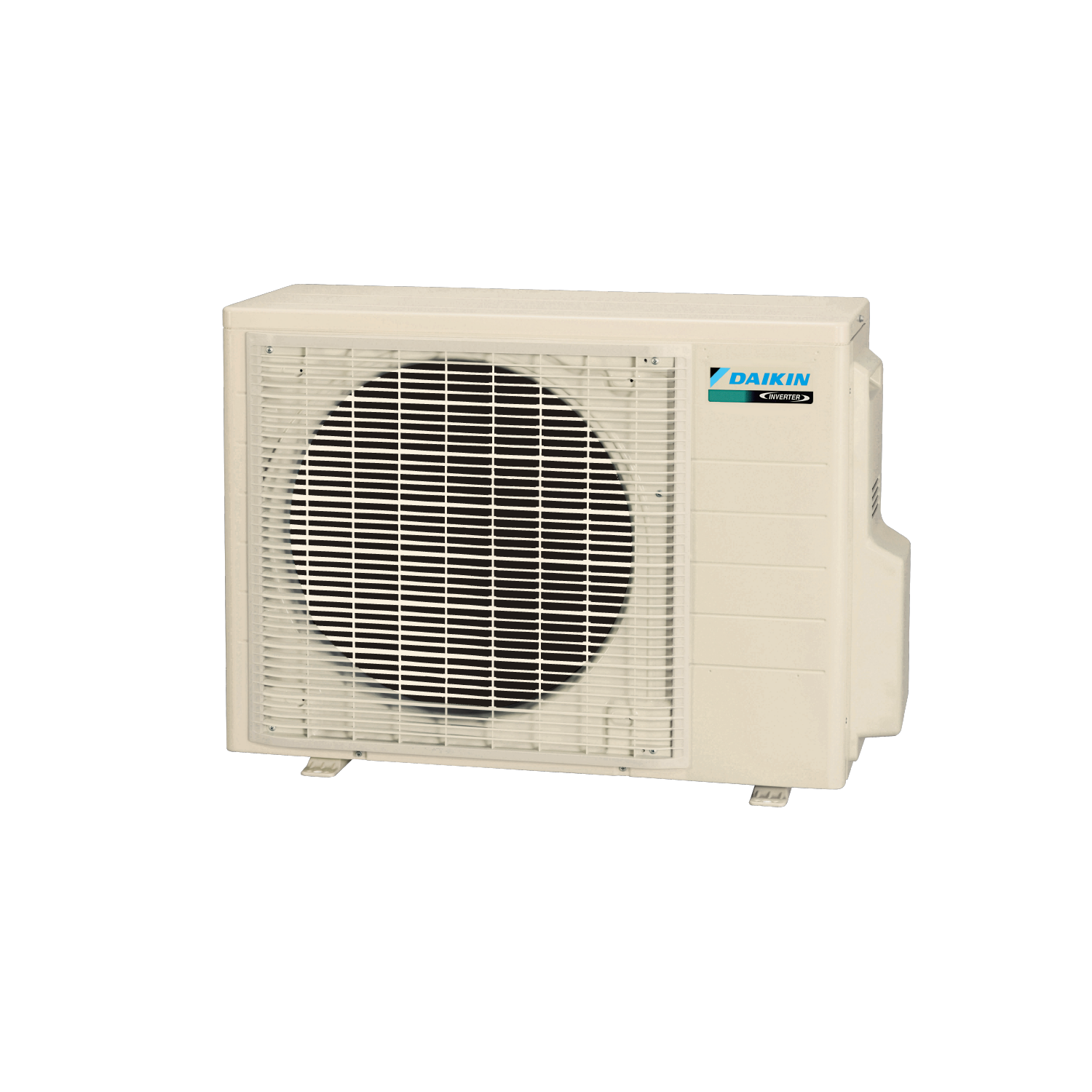

Outdoor Unit

RZR50MVM

Power Consumption

Cooling: 1.24 W

Indoor Unit

Airflow Rate

13.5 - 21 (3 steps)

Dimensions (H x W x D)

Panel: 50 x 950 x 950 mm

Body: 256 x 840 x 840 mm

Sound Level

28 - 35 dB(A)

Weight

Panel: 5.5 kg

Body: 21 kg

Outdoor Unit

Dimensions (H x W x D)

595 x 845 x 300 mm

Piping Connections

Gas: Ø15.9 mm

Liquid: Ø9.5 mm

Weight

43 kg

Max. Piping Length

50 m

Remarks

The data are based on the conditions below:

Cooling: indoor temp. 27°CDB/19°CWB; outdoor temp. 35°CDB/24°CWB

Piping length: 7.5m
